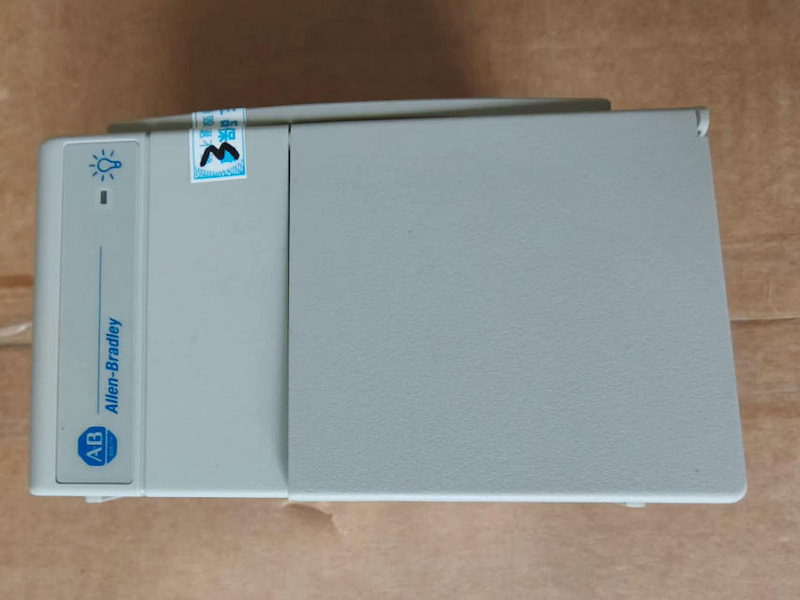

Allen-Bradley 1769-PB4 Compact I/O Power Supplie

Allen-Bradley 1769-PB4 Compact I/O Power Supplie

Description

Each 1769-L3x controller and additional bank of I/O modules requires a 1769 power supply. Place 1769 I/O modules to the left or right of the 1769 power supply. As many as eight I/O modules can be placed on each side of the power supply.

Each 1769 module also has a power supply distance rating (the number of modules from the power supply). Each module must be located within its distance rating. See the specifications for the module to determine its distance rating.

The Allen-Bradley CompactLogix 1769 programmable controllers are designed to provide a cost-effective, compact control solution for small to medium-sized applications. Includes integrated safety and adoption of the same programming software, network protocol and information capabilities included in all Logix controllers.

CompactLogix Power Supply 24V DC Input, 4A @ 5V DC Output：

AC or DC power options for CompactLogix™ controllers and distributed Compact I/O architecture

Technical Specifications
