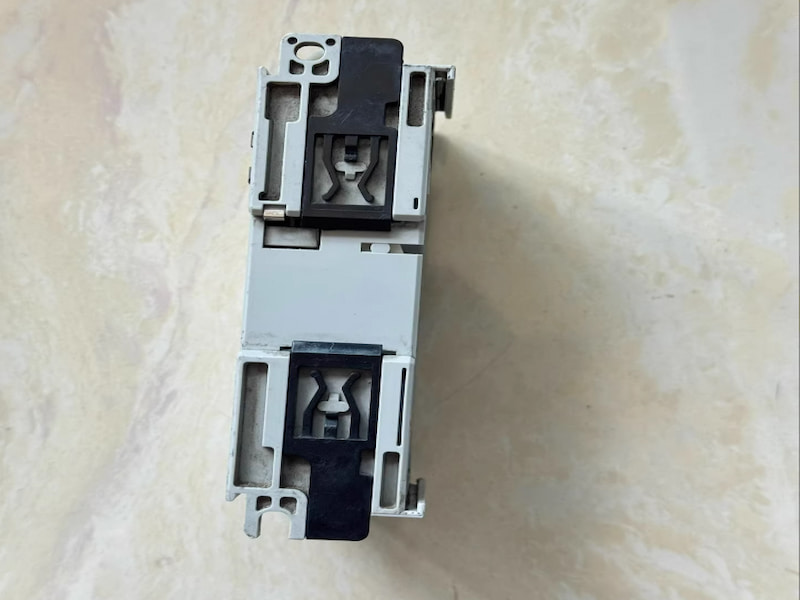

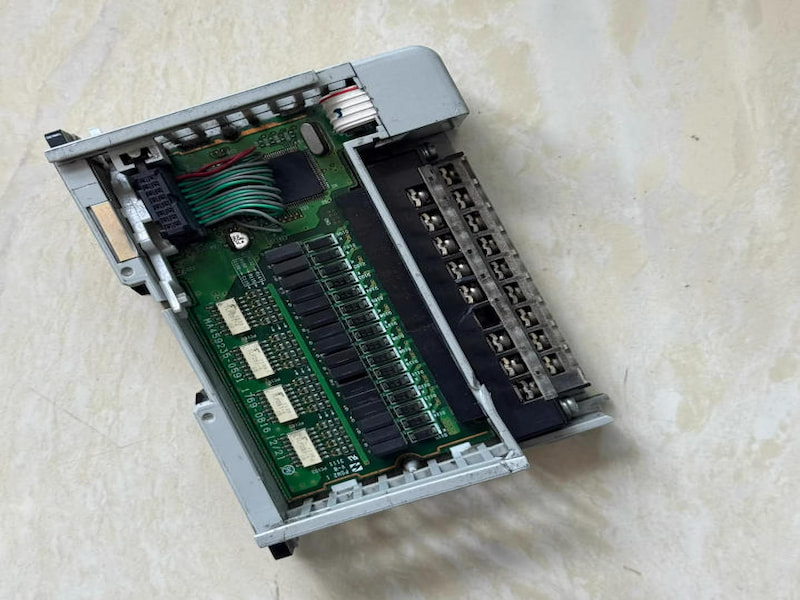

Allen-Bradley 1769-OB16 Solid State 24V dc Source Output Module

Allen-Bradley 1769-OB16 Solid State 24V dc Source Output Module

Description

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

• Once the modules are locked together, the system becomes a rugged assembly.

• Upper and lower tongue-and-groove slots guide the module during installation and attach the module to the system.

• Removable terminal blocks help ease the wiring task.

• Self-lifting, field-wire pressure plates cut installation time.

• The patented bus connector with the lock function enables consistent and system communication.

• A color bar is provided on the front of the module.

• Digital and field circuits are optically isolated.

Feature

An output module controls the output signal in this manner:

• Logic circuits determine the output status.

• An output indicator displays the status of the output signal.

• Optical isolation separates module logic and bus circuits from field power.

• The output driver turns the corresponding output on or off.

Technical Specifications
