Allen-Bradley 1769-OA16 COMPACTLOGIX 16DO 85-265V AC MODULE

Allen-Bradley 1769-OA16 COMPACTLOGIX 16DO 85-265V AC MODULE

Description

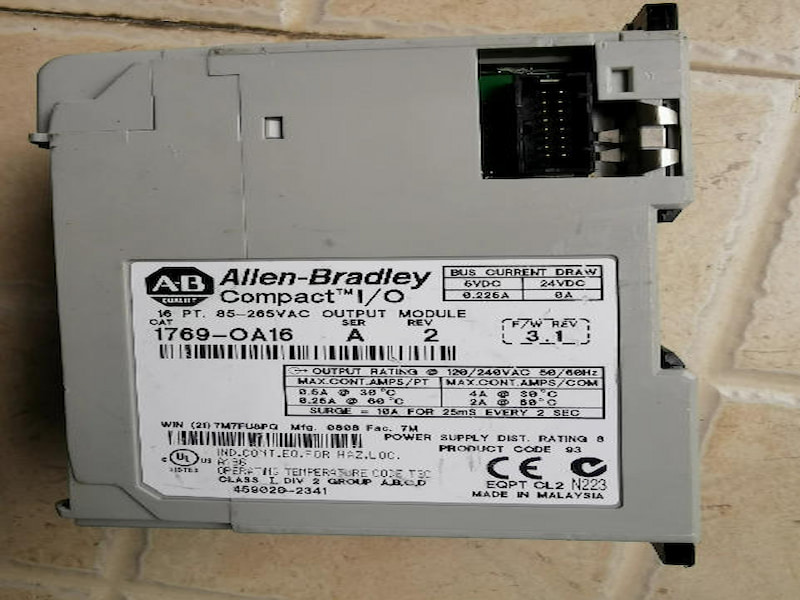

The 1769-OA16 is a 16-point 100 to 240V ac output module. The module has two isolated groups with 8 points per group, thereby allowing you to mix 120 and 240V ac sources.

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

• Once the modules are locked together, the system becomes a rugged assembly.

• Upper and lower tongue-and-groove slots guide the module during installation and attach the module to the system.

• Removable terminal blocks help ease the wiring task.

• Self-lifting, field-wire pressure plates cut installation time.

• The patented bus connector with the lock function enables consistent and system communication.

• A color bar is provided on the front of the module.

• Digital and field circuits are optically isolated.

CompactLogix 16 Point 120/240V AC Output Module：

AC and DC modules available

I/O density from 8 to 32 points per module

Solid state and relay contact output modules available

High speed input modules

Input filtering is standard

Optical isolation available

Technical Specifications
