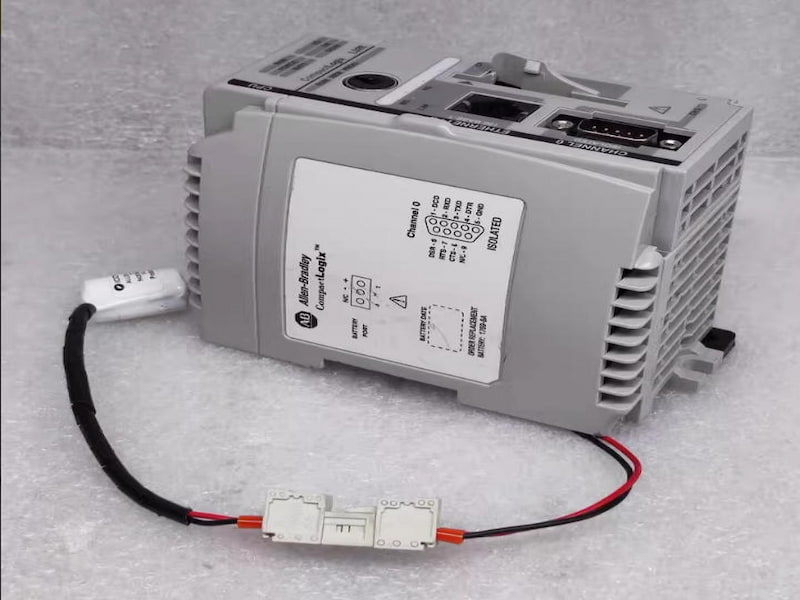

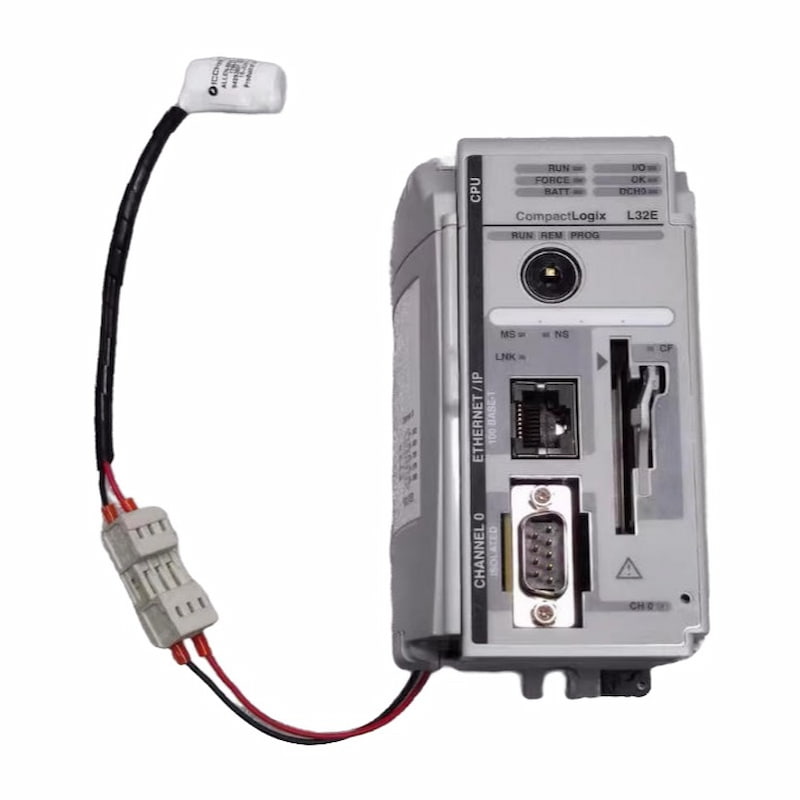

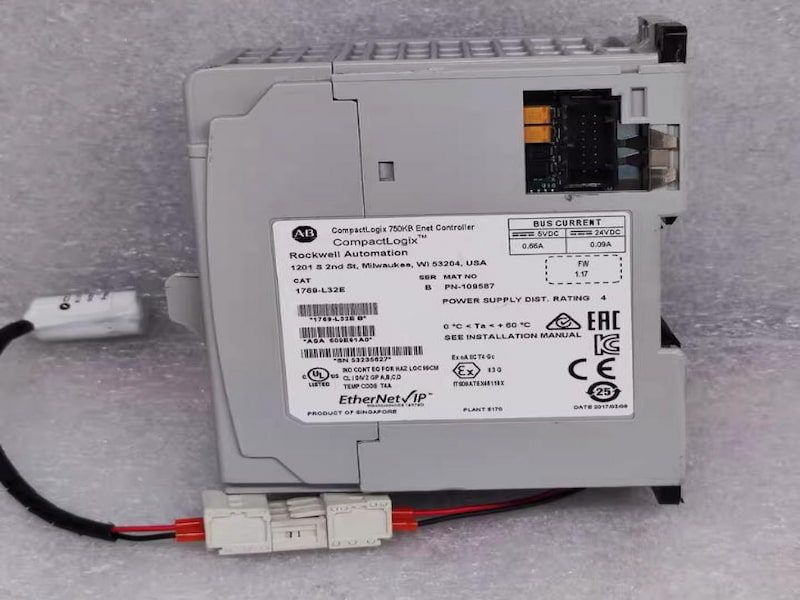

Allen-Bradley 1769-L32E CompactLogix 1769 L3 Processor EtherNet 750KB

Allen-Bradley 1769-L32E CompactLogix 1769 L3 Processor EtherNet 750KB

Description

The Allen-Bradley CompactLogix 1769 programmable controllers are designed to provide a cost-effective, compact control solution for small to medium-sized applications. Includes integrated safety and adoption of the same programming software, network protocol and information capabilities included in all Logix controllers.

The CompactLogix controller has a power supply distance-rating of four modules. The controller must be the leftmost module in the first bank of the system. The maximum configuration for the first bank of a CompactLogix controller includes the following:

• The controller

• Three I/O modules to the left of the power supply

• Eight I/O modules to the right of the power supply

CompactLogix EtherNet Processor, 750 Kbyte Memory：

Ideal for small to mid-size applications

Integrated communications may include serial or EtherNet/IP™

Additional communications modules available

Features

Available user memory：750 KB

CompactFlash card： 1784-CF128

Communication ports：1 Ethernet port

Module expansion capacity：16 1769 modules

Power supply distance rating：4 modules
