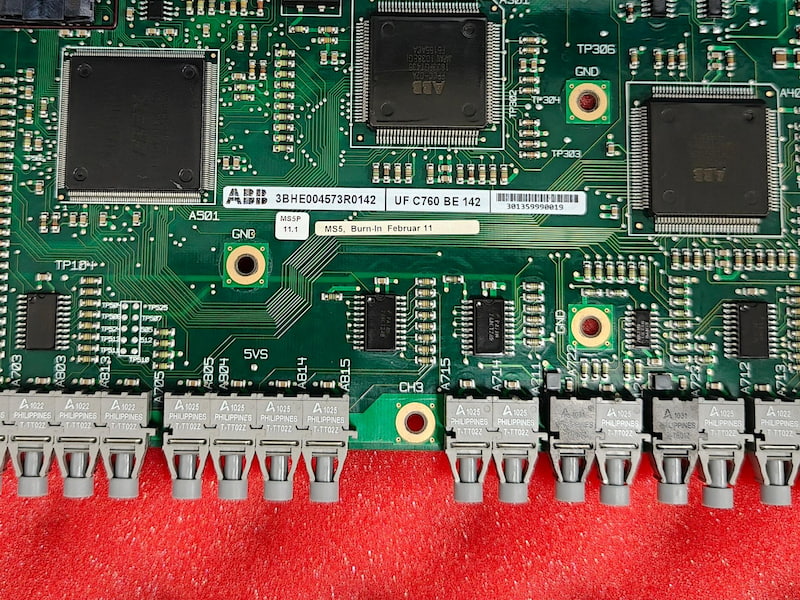

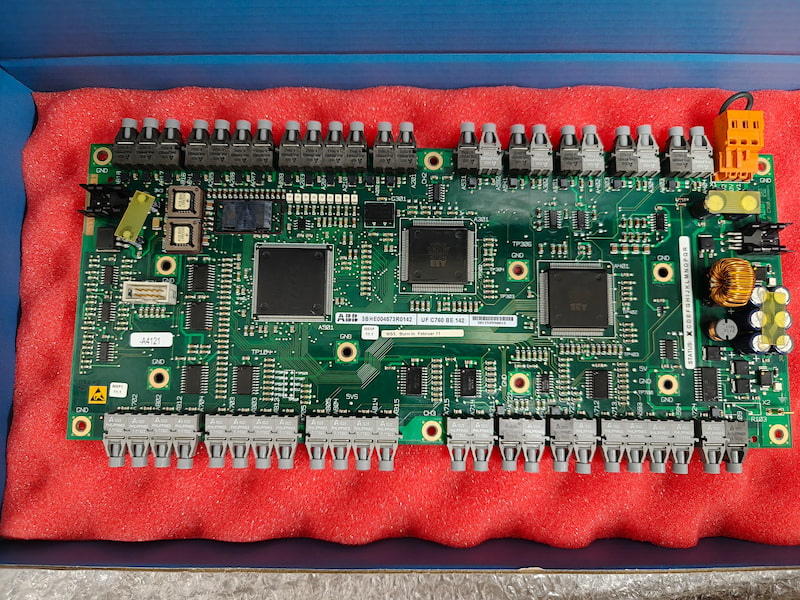

ABB UFC760BE142 3BHE004573R0142 Interface Board

ABB UFC760BE142 3BHE004573R0142 Interface Board

Functional Description

· Interface board is used as lGCT pulse controller. INT controls firing pattern for standard 12 inverter lGCTs.

One INT board controls the firing of one power stage (12 IGCTs).

· INT board is an interface between AMC board and all other printed circuit boards.

· INT board includes fast HW protections like overcurrent or overvoltage detection (from CVMl) or lGCT fault

detection (from GUSP or FSCD).

· In case of a serious fault which could damage the ACS 6000, INT trips immediately the MCB among the

other protection functions.

· In addition to standard connections 1st INU has a fiber optic interface with DlU/VLU/RBU/BCU (firing

signals to lGCTs & feedback from VLSCD boards), with EAF board for diode supervision in LSU if diode

rectifier is used and one additional output to trip the MCB directly.

· 3 MVA & 5 MVA INU is using VLSCD boards instead of FSCD boards.

Technical Specifications
