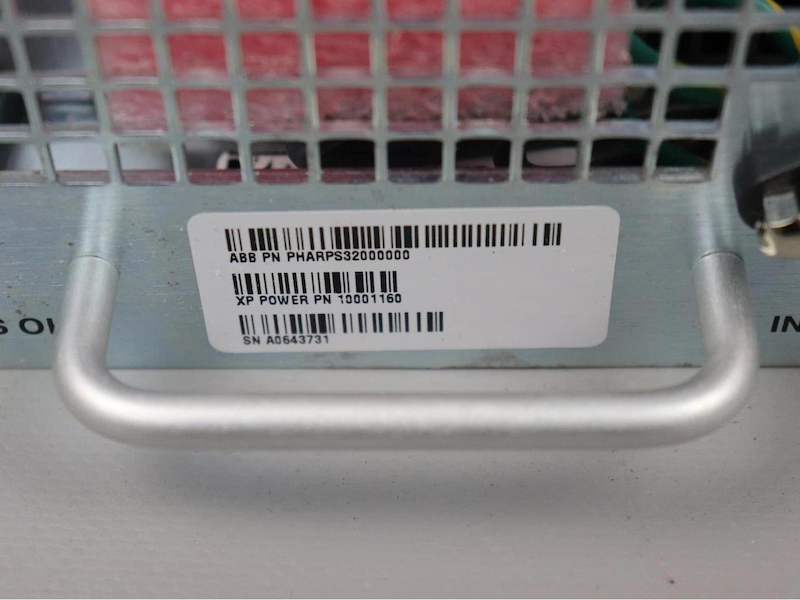

ABB PHARPS32000000 MPS III Power Supply

ABB PHARPS32000000 MPS III Power Supply

Functional Description

The Modular Power System III (MPSIII) supplies 5 VDC, ±15 VDC, 24 VDC, 48 VDC, and 125 VDC power to

Harmony Rack components of the Symphony Enterprise Management and Control System. The power

system is designed to operate with 2N redundancy. This power system can operate with 120 VAC, 240 VAC,

or 125 VDC input power.

Features

· Multi-Voltage DC Power System

· System and Field Power

· 2N and N+1 Configuration

· System Monitoring

· "Slide-in" Design

· Evolution for Network 90, MPS I (PMU), and MPS II Supplies

Technical Specifications
