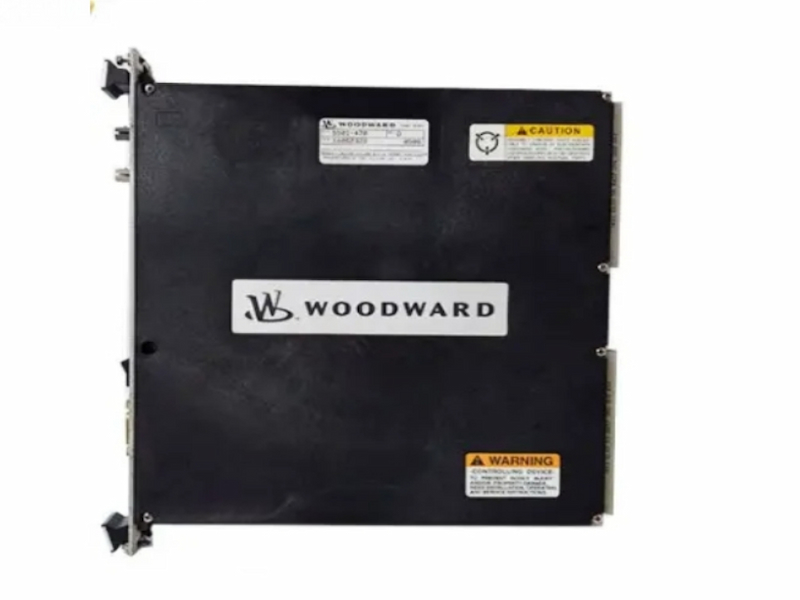

Woodward 5503-335 MicroNet 5200 CPU Module

Woodward 5503-335 MicroNet 5200 CPU Module

Functional Description

5503-335 is a MicroNet 5200 CPU Module manufactured and designed by Woodward and used in Gas Turbine Control Systems. The MicroNet 5200 CPU Module is a type of embedded computing system that includes a central processing unit (CPU), memory, and various input/output interfaces. It is designed for use in industrial automation and control systems, as well as other applications that require reliable and high-performance computing. The MicroNet 5200 CPU Module is based on the Intel Atom processor, which provides a balance of performance and power efficiency. It also includes up to 4GB of DDR3 memory, which allows it to handle complex computational tasks.

Features

• Processor: The module is based on an Intel Atom processor, which provides a good balance of performance and power efficiency.
• Memory: The module comes with up to 4GB of DDR3 memory, which allows it to handle complex computational tasks.
• I/O Interfaces: The module includes multiple serial ports, Ethernet, USB, and other interfaces, making it suitable for connecting to various types of sensors, actuators, and other devices.
• Operating System: The module supports various operating systems such as Windows Embedded Standard, Windows Embedded Compact, and Linux.
• Industrial Communication Protocols: The module supports various industrial communication protocols such as Modbus, CANbus, and PROFIBUS, making it suitable for use in industrial control and automation systems.
• Compact Size: The module is designed to be compact, which makes it easy to integrate into a variety of different systems.
• Robust Design: The module is designed to be robust, with features such as rugged connectors, a wide operating temperature range, and shock and vibration resistance, making it suitable for use in harsh environments.

Technical Specifications
