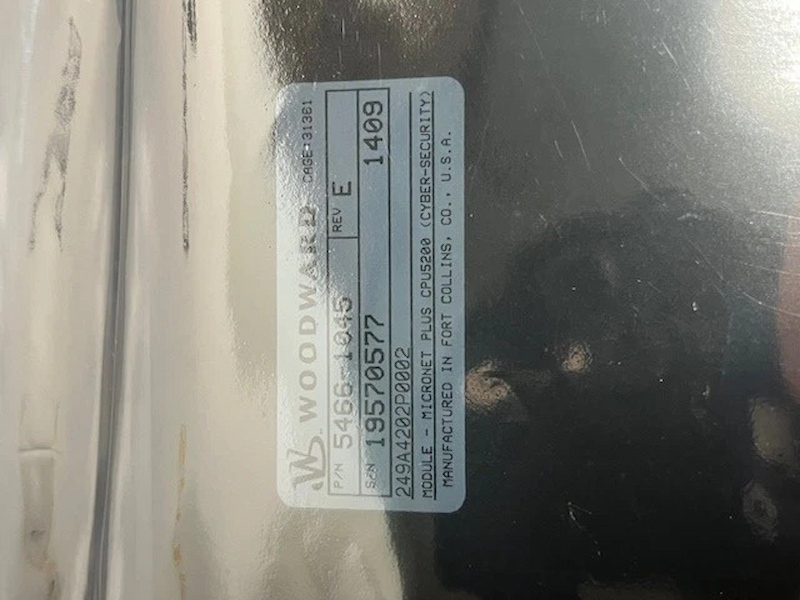

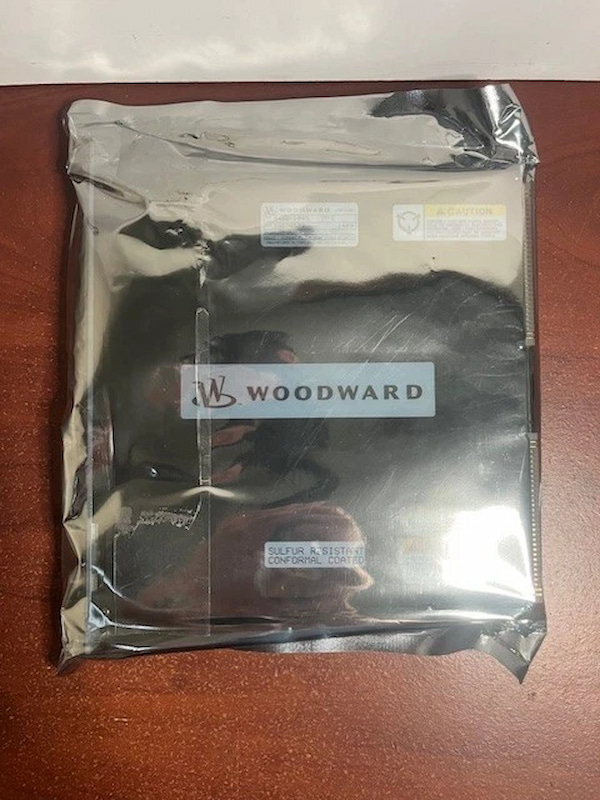

Woodward 5466-1045 MicroNet Plus CPU Module

Woodward 5466-1045 MicroNet Plus CPU Module

Functional Description

The 5466-1045 is a MicroNet Plus CPU5200 Controller Module, the MicroNet PowerPC CPU Module contains

a Motorola MPC5200 processor, 128 Mbyte DDR RAM, 64 MB of flash memory, a Real Time clock, and

various communication peripherals. These peripherals include (2) general use Ethernet ports, (2) Real Time

Network ports, (1) serial port, (1) one service port, and (2)CAN ports. This module includes an FPGA to

provide VMEbus master/slave capability as well as other functions necessary for redundant systems.

The CPU5200 Module can operate in both simplex and redundant modes. Every MicroNet Plus simplex

control contains one CPU module located in the first I/Oslot of the MicroNet chassis. A redundant

configuration will also have a CPU located in the CPU2 location (slot 8 or slot 14 depending on which chassis

is used).

This module was designed and rated for -40 to +85 °C operation in the industrial marketplace.
