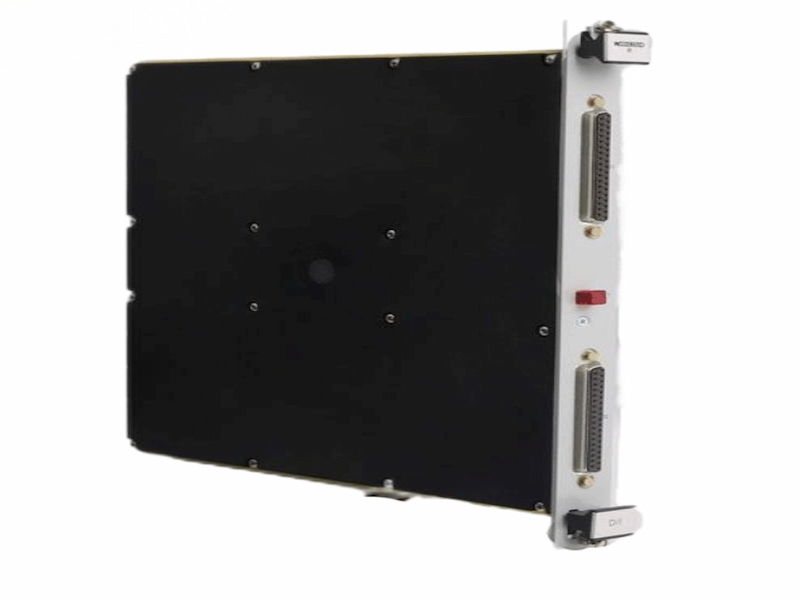

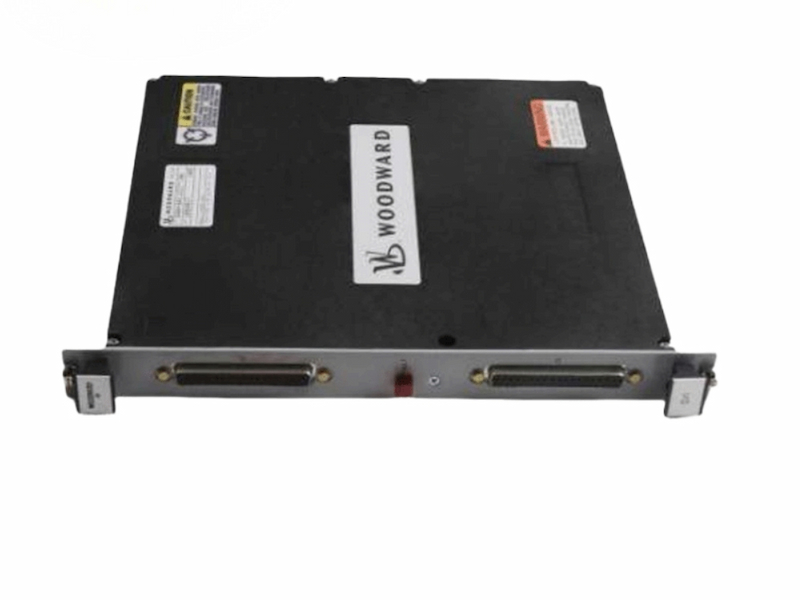

Woodward 5464-545 Netcon Module

Woodward 5464-545 Netcon Module

Description

5464-545 MicroNet™ Simplex Digital Control Four Channel Actuator Module. 5464-545 receives digital information from the CPU and 0generates four proportional actuator-driver signals. These signals are proportional and their maximum range is 0 to 25 mAdc or 0 to 200 mAdc.

The system writes output values to dual-port memory through the VME-bus interface.

The microcontroller scales the values using calibration constants stored in EEPROM, and schedules outputs to occur at the proper time.

The microcontroller monitors the output voltage and current of each channel and alerts the system of any channel and load faults. The system can individually disable the current drivers. If a fault is detected which prevents the module from operating, by either the microcontroller or the system, the FAULT LED will illuminate.

Technical Specifications
