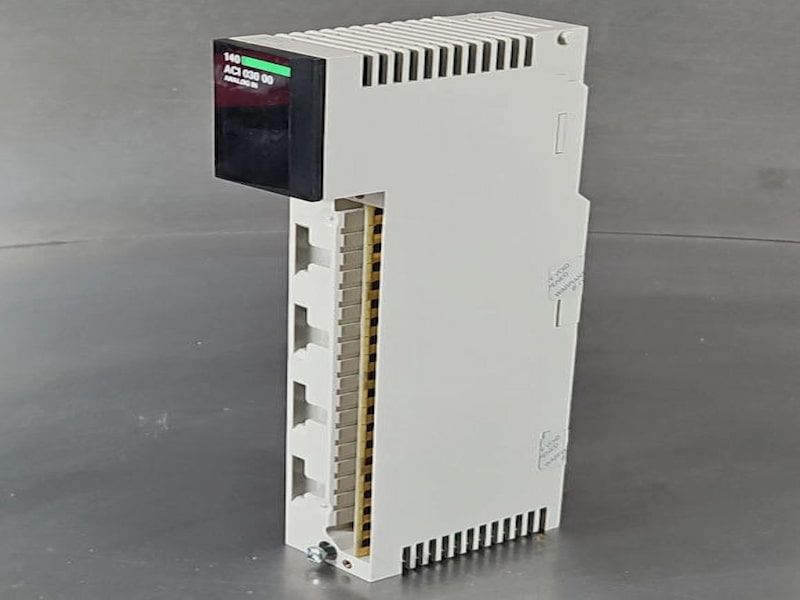

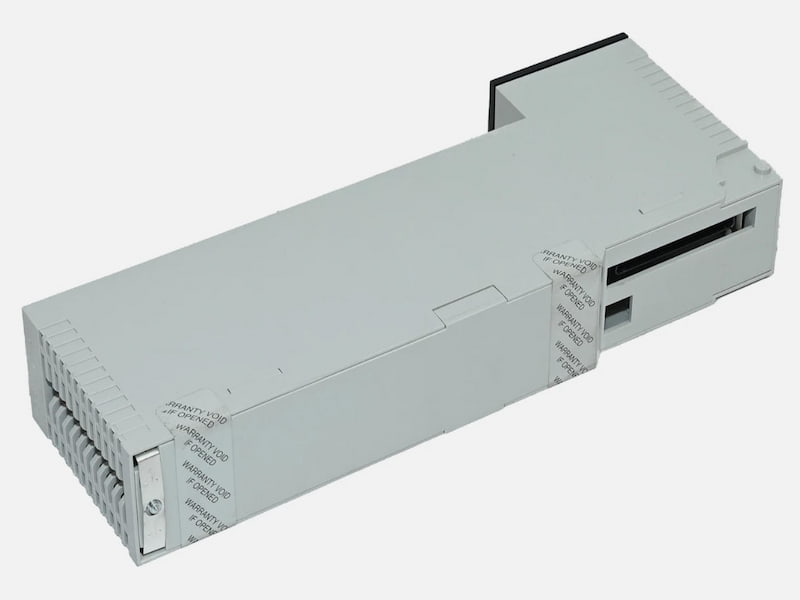

Schneider 140ACI03000 Analog Input Module

Schneider 140ACI03000 Analog Input Module

Description

The Schneider 140ACI03000 is an 8-channel differential analog input module of the Modicon Quantum series PLC. It is specially designed for industrial automation systems and can accurately collect 1–5V voltage and 4–20mA current signals. It is compatible with the HART protocol and is suitable for various industrial sensors.

This module converts analog signals into 12-bit digital quantities. It features channel and bus electrical isolation, short circuit/under-voltage diagnosis functions, a 5ms fast response, and can meet the high-precision process data collection requirements in scenarios such as chemical, power, and metallurgy.

Features

• Compatible with Modicon Quantum PLC system, 8-channel differential input
• Supports 1–5V / 4–20mA signals, compatible with HART protocol
• 12-bit resolution, linear error ≤ ±0.04%FS
• Channel–bus 1000V DC isolation, channel-to-channel 30V DC isolation
• 5ms update time, 4–20mA open circuit / 1–5V under-voltage diagnosis
• Wide temperature operation 0℃~+60℃, UL/CSA/CE certified
• LED status indication, supports hot swapping, convenient for operation and maintenance
