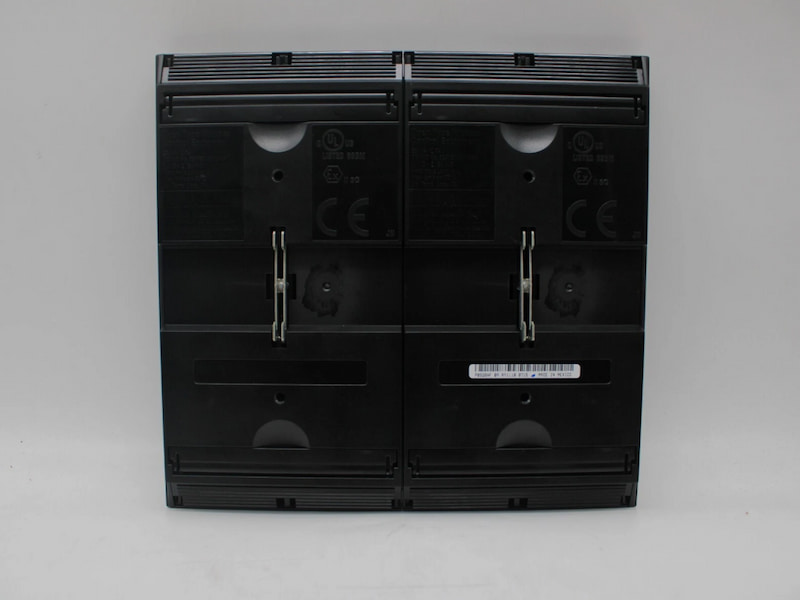

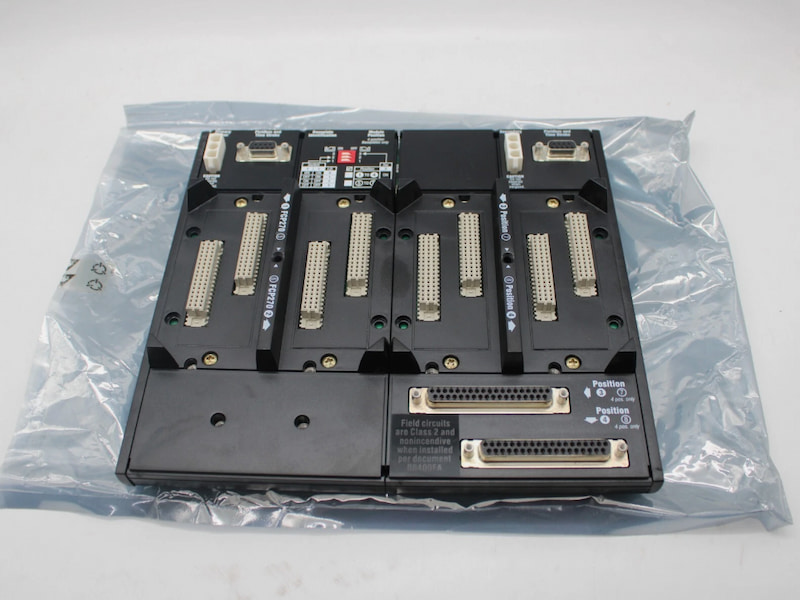

Foxboro P0926HF Standard 200 Series Baseplate

Foxboro P0926HF Standard 200 Series Baseplate

Description

The Standard 200 Series baseplates provide the mounting platform and communication backplane for DIN rail mounted 200 Series modules.

These standard 200 Series baseplates support distributed control for both small and large systems and specifically support the following Foxboro Evo™ system modules:

• Field Control Processor 280 (FCP280) faulttolerant or non-fault-tolerant
• Field Device Controller 280 (FDC280) faulttolerant or non-fault-tolerant
• Field Control Processor 270 (FCP270) faulttolerant or non-fault-tolerant
• Field Communications Modules (FCM100Et and FCM100E) and other FCMs
• Fieldbus Expansion Modules (FEM100E)
• Fieldbus Isolator/Filter Modules (FBI200/FBI100)
• Standard Fieldbus Modules (FBMs) and 100 Series FBMs connection

The standard FBM-supporting 200 Series baseplates enable overall system installation functionality by providing unit increments of 2, 4, and 8 FBM positions in combination with vertical and horizontal mounting.

Features

• For FBM-supporting baseplates:

  2, 4, and 8 module positions in combination with vertical and horizontal mounting

  Field connection for I/O termination assemblies, redundant adapters and module identifiers for each module

  DIP switch for identification of certain Modular Baseplates

  Adding additional 200 Series baseplates without removing the system from service (requires redundant bus)

• For FCP280/FCP270, FDC280, and FCM100Et baseplates support:

  Connection for optional GPS time strobe. All non-FDC280 modules require splitters/terminators for time strobe connections. FDC280 baseplates support direct connection.

• All baseplates except the FDC280 baseplate (RH101KF) support:

  Connection to the 2 Mbps Module Fieldbus for the Standard Fieldbus Modules, or to a 268 Kbps Fieldbus for the 100 Series FBMs

  Splitters/terminators for A/B Fieldbus

  Backwards compatibility with existing I/O subsystems allowing for future expansion without additional interface hardware

• Primary and secondary 24 V dc power and communications connections
• Keyed positions dedicated to individual CP-type modules such as the FCP280, FDC280, or FCM/FBM only, depending on the baseplate type
• Passive backplane to increase system reliability
