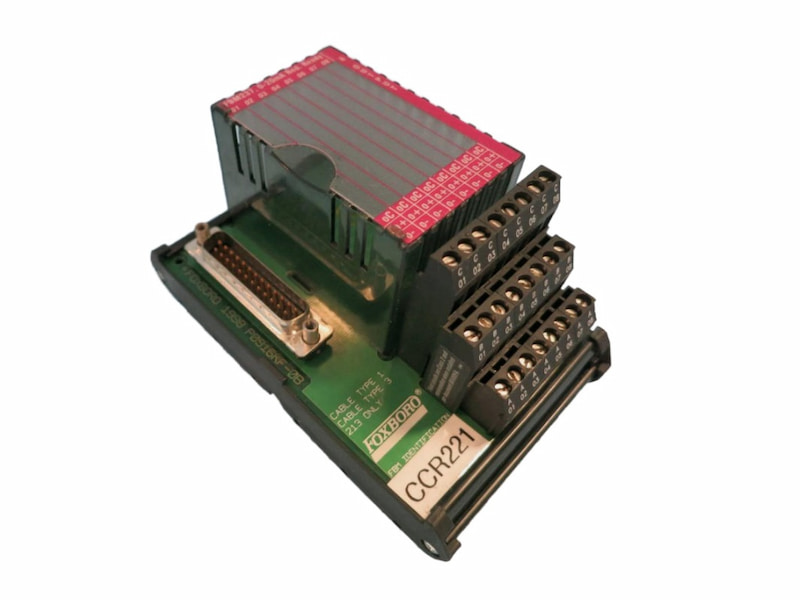

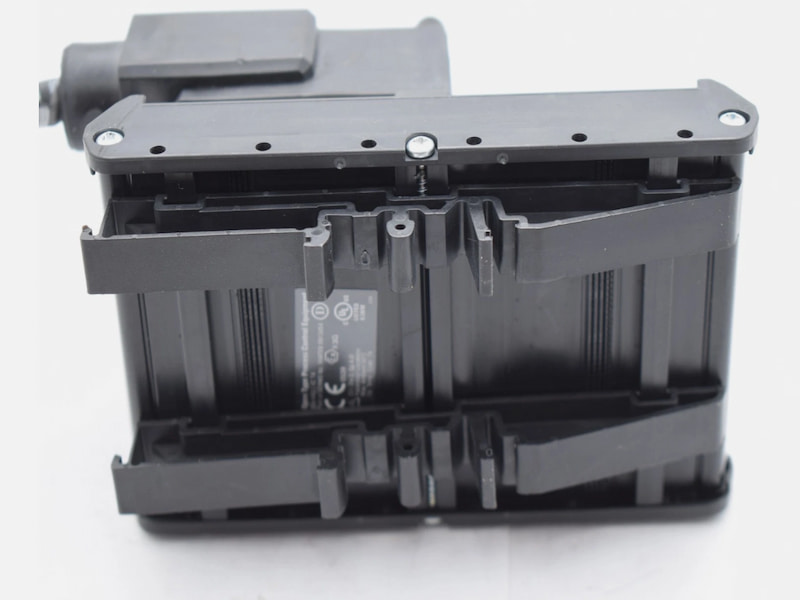

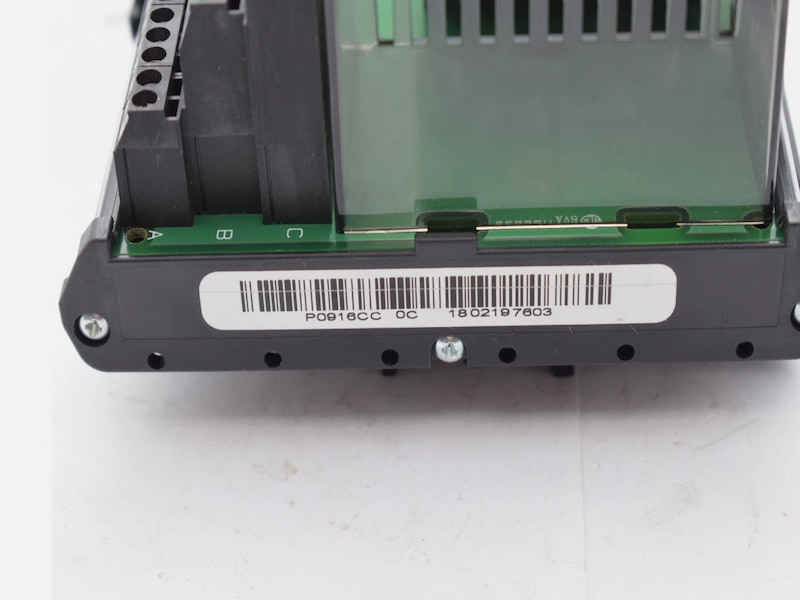

Foxboro P0916CC Termination Assemblies

Foxboro P0916CC Termination Assemblies

Description

The FBM237, 0 to 20 mA Output Module contains eight channels.The outputs are galvanically isolated from other channels and ground. The module can be used as a single unit, or as a redundant pair (two FBM237s).

When used as a redundant pair, field output signals are wired to one common termination assembly (see Figure 1). Each module in the pair independently holds the output(s) at its specified output value(s).

Feature

• Eight 20 mA dc analog output channels
• Each output channel is galvanically isolated
• Single or redundant modules
• Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
• Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM237
• TA for use with Output Bypass Station to maintain outputs during maintenance operations
• 3-tier termination assembly for per channel internally and/or externally loop powered transmitters

Technical Specifications
