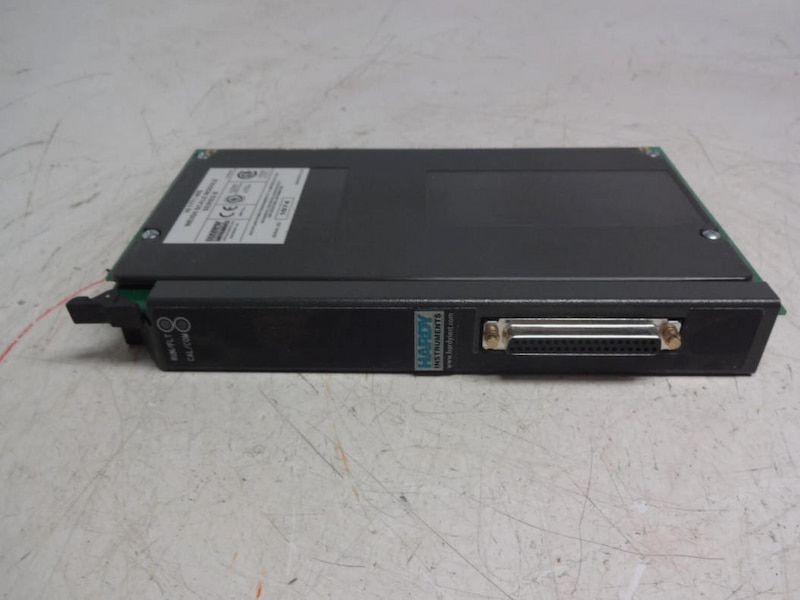

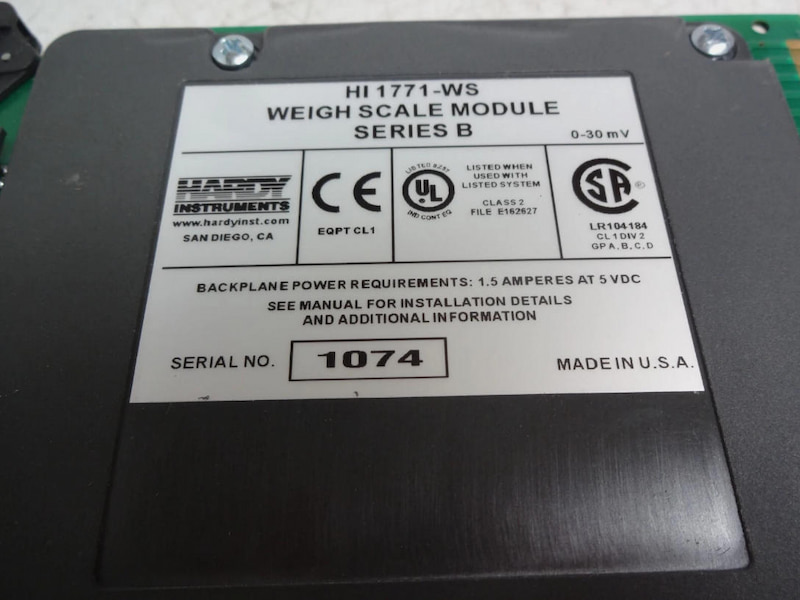

Allen-Bradley 1771-WS Weigh Scale Module

Allen-Bradley 1771-WS Weigh Scale Module

Description

The Weigh Scale Module reads data from industry-standardload cells on storage tanks, reactors, and other vessels usedin batching and blending operations. It reads the weightvalues directly from the load-cell junction box without theneed for weigh-scales, and puts the value into the PLC-5processor. It also compares the weight to set-point values(with pre-act values)and single-transfers the results to theinput image for quick response.

With the module, we provide calibration and configurationsoftware that consists of easy-to-use faceplates.

Typical Applications：

• Batch weighing of ingredients
• Bin inventory
• Vessel-filling applications
• Adding materials into mixing vessels

Specific applications include:

• Food and beverage batch processing
• Concrete plants Specialty chemical batch control
• Pharmaceuticals

Technical Specifications
