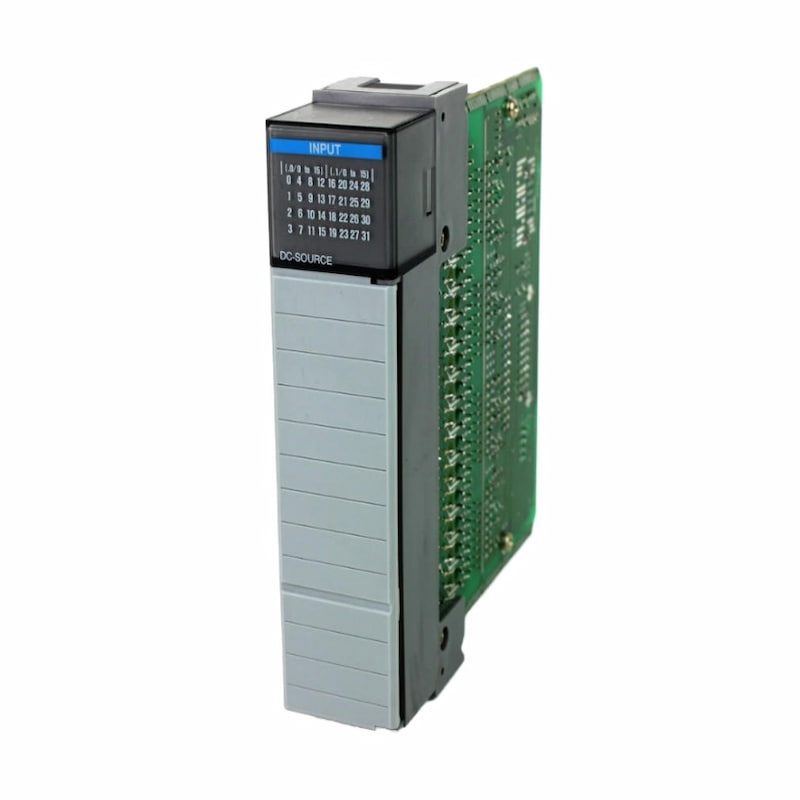

Allen-Bradley 1746-IV32 SLC 32 Point Digital Input Module

Allen-Bradley 1746-IV32 SLC 32 Point Digital Input Module

Description

Our wide variety of input, output, and combination modules makes theSLC 500" family the smart choice for all of your small PLC applications.l/O modules are available in a wide variety of densities including 4-, 8-, 16-.and 32-point and can interface to AC, DC, and TTL voltage levels. Outputmodules are available with solid state AC, solid state DC, and relay contacttype outputs. For added flexibility, combination modules are also availablein 2-input/2-output, 4-input/4-output, and 6-input'6-output versions.

Designed and tested for industrial applications, our modules are of the highestquality. The modules feature input filtering, optical isolation, and built-insurge protection to enhance the reliability of operation in noisy industrial environments.

The 32-point l/O modules allow you to reduce panel space requirements bywiring 32 DC input or 32 DC output devices to a module residing in one slot.These modules can be used with both modular chassis systems or fixed controllers.

The 32-point modules come equipped with a 40-pin male connector on thefront instead of screw terminals. This connector is designed to accept yourcable fitted with the 1746-N3 mating connector. One 1746-N3 connector and45 crimp type contacts are packaged with each module. The other end of thecable can be wired to a user-supplied terminal block.

Technical Specifications
