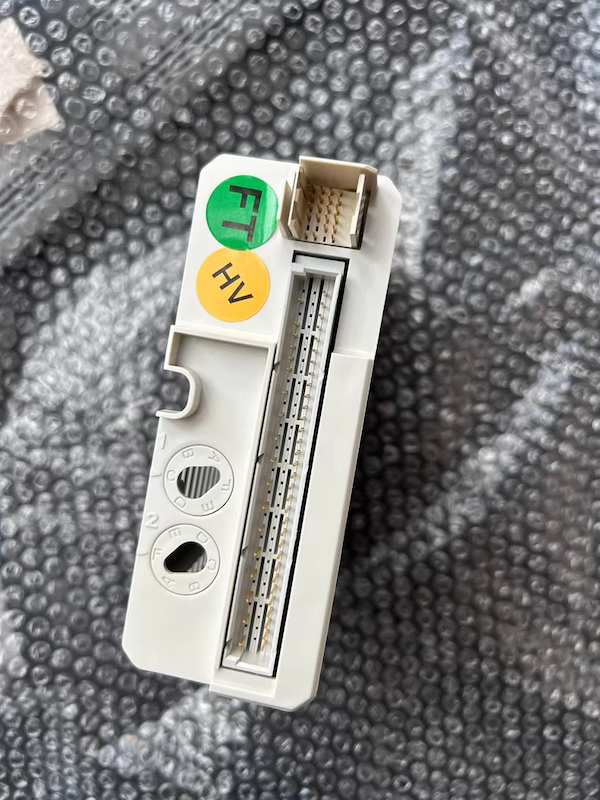

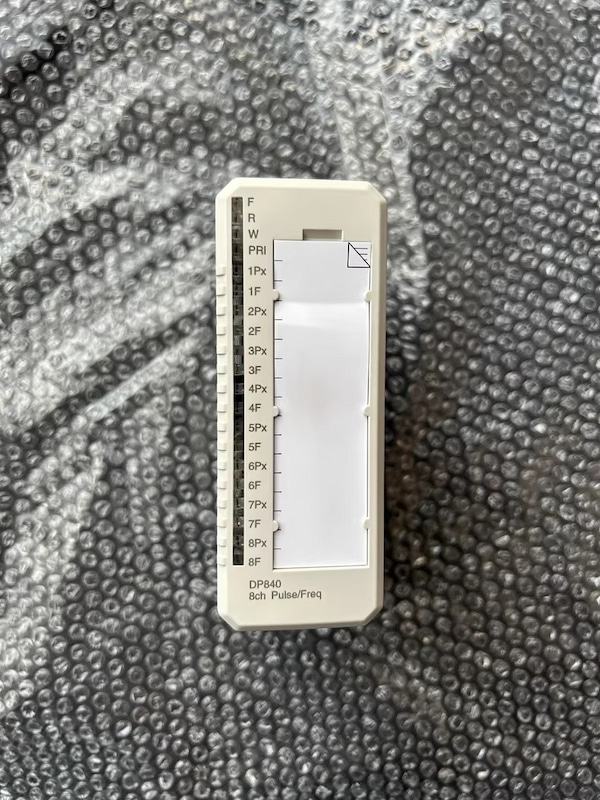

ABB DP840 3BSE028926R1 Pulse Counter

ABB DP840 3BSE028926R1 Pulse Counter

Functional Description

The DP840 module consists of 8 identical independent channels. Each channel can be used for pulse count

or frequency (speed) measurement, maximum 20 kHz. The inputs can also be read as DI signals.  Each

channel has a configurable input filter. The module perform self-diagnostics cyclically. With advanced

diagnostics, for single or redundant applications. Interface for NAMUR, 12 V and 24 V. The input can be read

as digital input signals.

Use DP840 with Module Termination Units TU810V1, TU812V1, TU814V1, TU830V1, TU833.

Features and benefits

· 8 channels

· The modules can be used in both single and redundant applications

· Interface for NAMUR, 12 V and 24 V transducer signal levels

· Each channel can be configured for pulse count or frequency measurement

· The inputs can also be read as DI signals

· Pulse count by accumulation in a 16 bit counter

· Frequency (speed) measurement 0.5 Hz - 20 kHz

· Advanced on-board diagnostics

Technical Specifications
