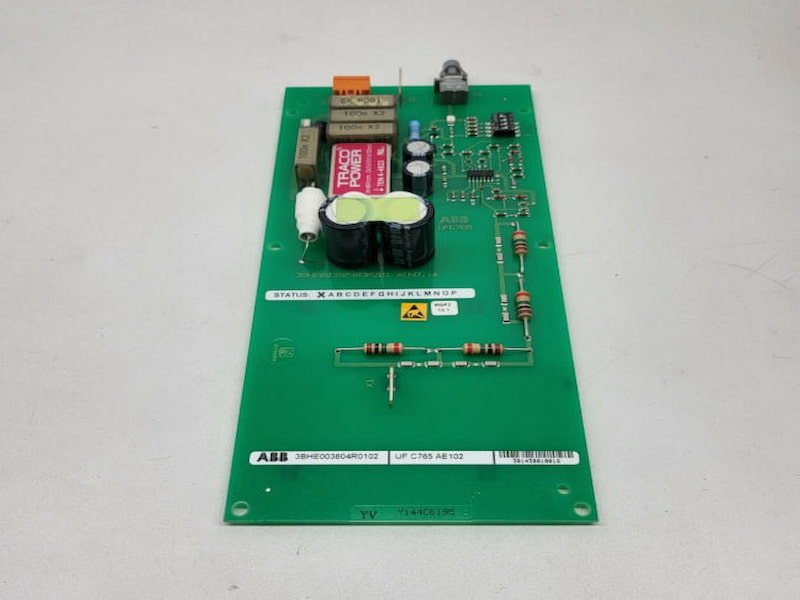

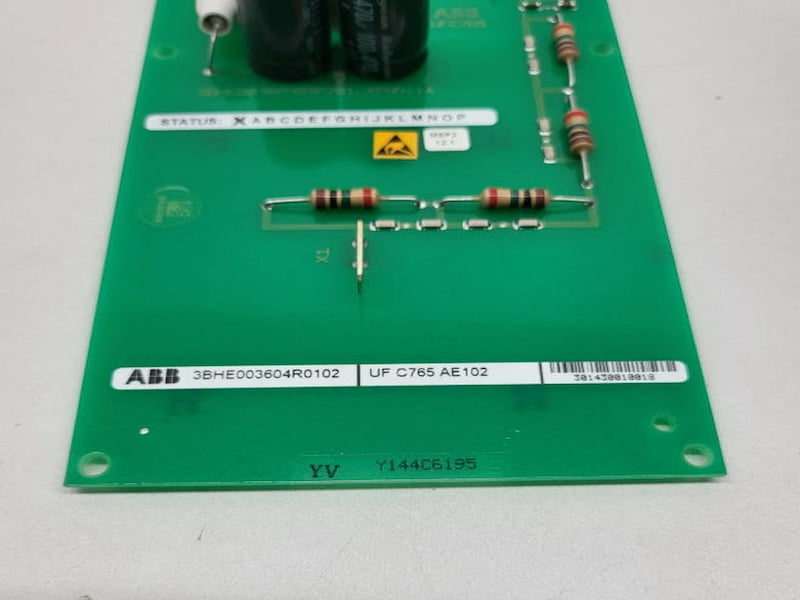

ABB 3BHE003604R0102 EAF-BOARD COATED

ABB 3BHE003604R0102 EAF-BOARD COATED

Description

ABB 3BHE003604R0102 is a coated type ground fault monitoring board (EAF-BAR) of model UF C765 AE102, which belongs to the ABB Advant Master process control system and is used for fault detection and location in the Masterbus 300 communication network.

This board card has the ability to accurately identify open circuits, short circuits and ground faults, can locate the faulty equipment, supports hot swapping, and can be replaced without stopping the machine, ensuring continuous system operation and facilitating maintenance.

Features

• Model: 3BHE003604R0102, Board Type: UF C765 AE102, Type: EAF Coating Ground Fault Monitoring Board
• Compatible System: ABB Advant Master Process Control System (Masterbus 300 Network)
• Core Functions: Communication network fault detection, ground fault monitoring, fault location and alarm
• Design Features: Coating protection, suitable for complex industrial environments; supports hot swapping, efficient maintenance
• Fault Types: Capable of detecting open circuits, short circuits, and ground faults, accurately locating faulty nodes
• Original Factory Quality: Original specification, compatible with original factory system, ensuring stable and reliable control network

Technical Specifications
