ABB 3BHB000272R0101 I/O CONTROL BOARD

ABB 3BHB000272R0101 I/O CONTROL BOARD

Description

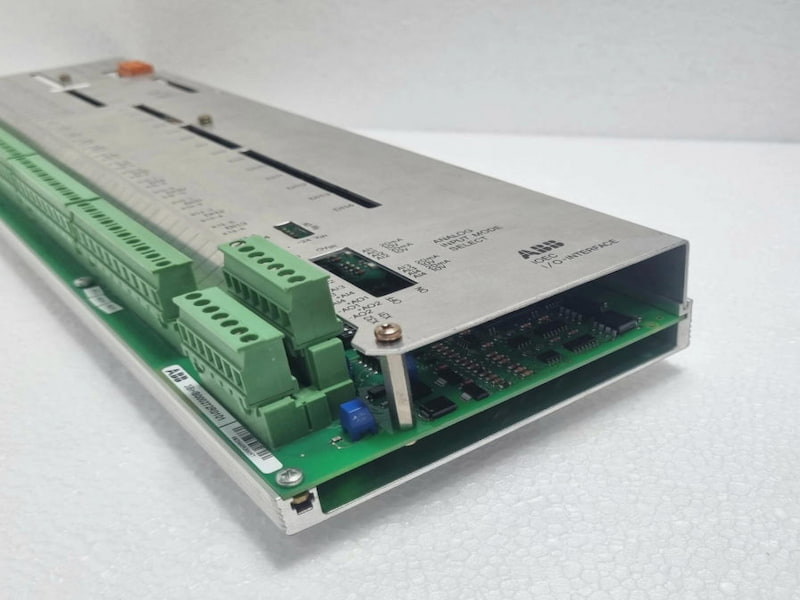

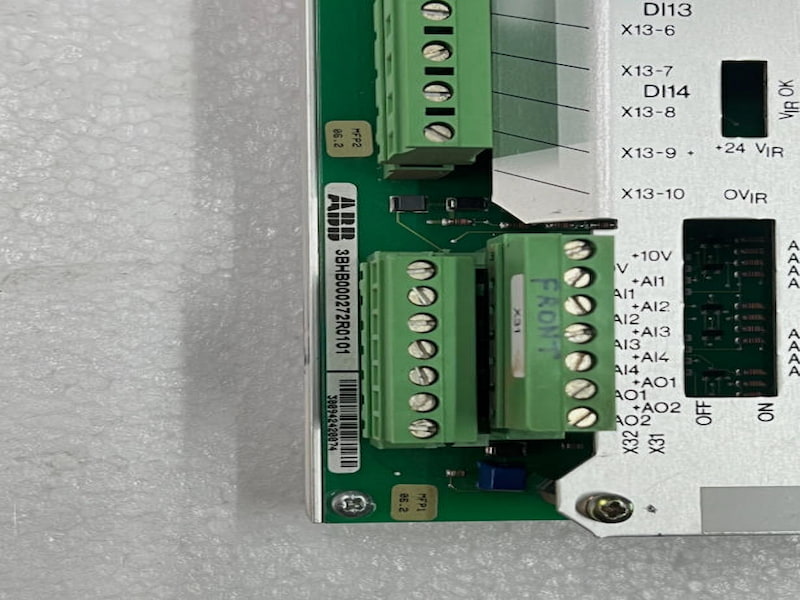

ABB 3BHB000272R0101 (UFC719AE101) is an IOEC I/O control board for ABB's medium-voltage drive system, compatible with ACS1000/ACS2000 and other series of frequency converters. It serves as the signal interface between the system and on-site sensors and actuators, responsible for collecting digital and analog signals, performing logical control and outputting instructions, ensuring stable data exchange between the drive system and external equipment.

This control board adopts an industrial-grade rugged design, featuring strong resistance to electromagnetic interference and vibration. It can adapt to harsh industrial environments such as power and metallurgy. It integrates high-density I/O channels and multi-protocol communication circuits, has a compact structure, supports quick plug-and-play replacement, effectively reducing system operation downtime, and is the core I/O component of ABB's drive control system.

Features

Model: 3BHB000272R0101 (UFC719AE101), Type: IOEC I/O Control Board

Compatible systems: ABB ACS1000/ACS2000 medium-voltage frequency converters, industrial drive control systems

Core functions: 32 digital inputs / outputs, 8 analog inputs / outputs, signal conditioning, logic control

Communication support: Compatible with industrial protocols such as Modbus, CANopen, etc., suitable for data exchange among multiple devices

Environmental tolerance: Operating temperature 0°C to + 60°C, resistant to vibration, electromagnetic interference, suitable for harsh conditions

Electrical characteristics: 5V DC logic power supply, 500V AC isolation protection, stable and reliable signal transmission

Maintenance design: Plug-and-play installation, LED status indication, facilitating quick integration and fault troubleshooting

Technical Specifications
