TQ902-011 111-902-000-011 A1-B1-C180-D80-E5000-F0-G0-H05 Proximity Sensor

TQ902-011 111-902-000-011 A1-B1-C180-D80-E5000-F0-G0-H05 Proximity Sensor

Description

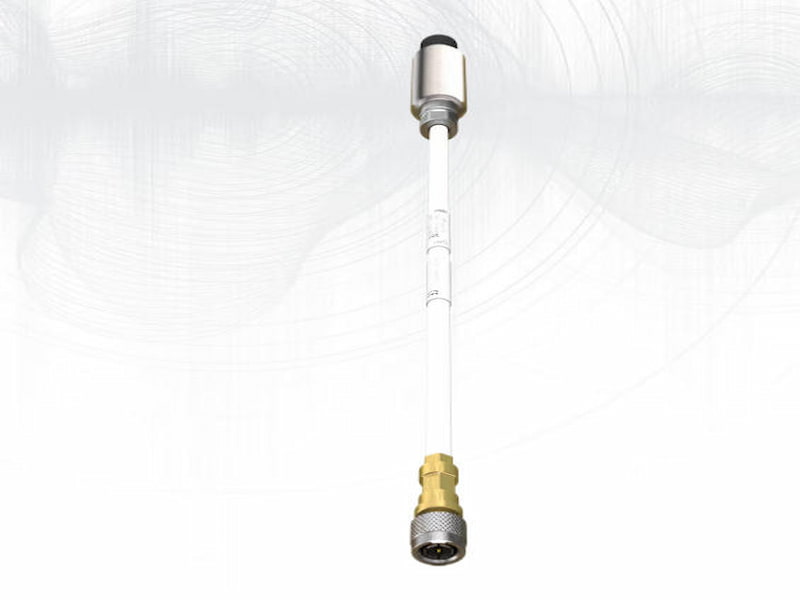

TQ902-011 is a dedicated eddy current proximity sensor for Meggitt Vibro-Meter vibration monitoring systems. It enables non-contact measurement of shaft vibration, axial displacement, and eccentricity in rotating machinery, complying with API 670 standards. As a core component for condition monitoring of critical equipment like turbines and compressors, this sensor features a stainless steel housing with high-temperature resistance, supporting operation in hazardous explosion-proof zones. It integrates standard mounting threads and a 5-meter coaxial cable, ensuring long-term stable performance in high-temperature, strong electromagnetic interference industrial environments.

Featuring a stainless steel housing and high-temperature resistant design, this sensor supports operation in hazardous explosion-proof zones. It integrates standard mounting threads and a 5-meter coaxial cable, ensuring long-term stable performance in industrial environments with high temperatures and strong electromagnetic interference. It is widely compatible with gas turbines, steam turbines, generators, and pump equipment.

Features

• Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
• 2 or 4 mm measurement range (Ø8.2 mm sensor)
• −40 to 180 °C operating temperature, IP68 protection rating
• 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
• Versions certified for use in potentially explosive atmospheres
• Conforms to API 670 5th edition
