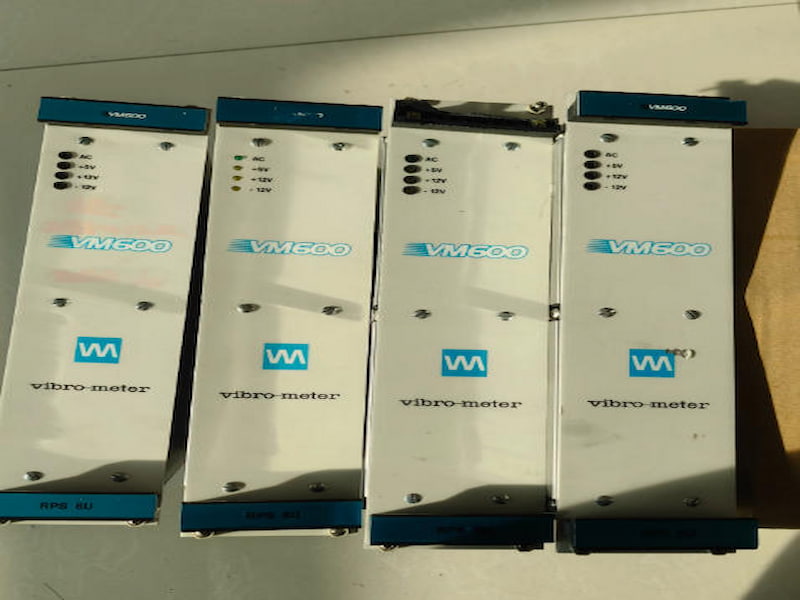

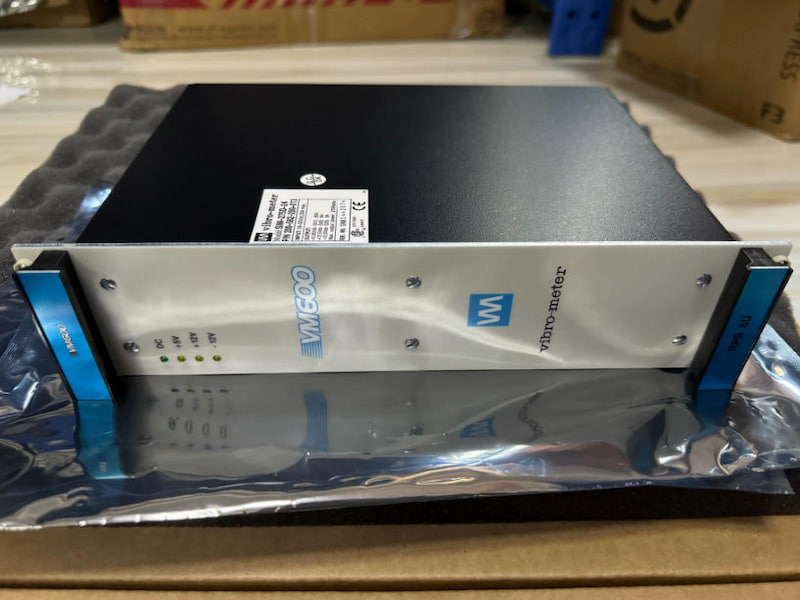

RPS6U 200-582-200-011 Rack Power Supplies

RPS6U 200-582-200-011 Rack Power Supplies

Description

RPS6U 200-582-200-011 is a 24V DC input rack power module, suitable for industrial rotating unit condition monitoring cabinets. It provides unified +5V and ±12V multi-channel DC stable power supply for all monitoring and computing cards in the cabinet through the backplane bus. The rated output power of the entire machine is 330W, and a single unit can support the basic operation requirements of the entire cabinet module.

The module supports dual-module redundant parallel deployment. When one power supply fails, the other can fully take over the load, ensuring the uninterrupted operation of the monitoring system. It is compatible with industrial wide temperature environments of 0-70℃ and integrates a complete electrical protection mechanism. It is widely used in power plants, oil and gas, chemical steam turbines, compressors, and online monitoring cabinet power supply for these equipment.

Features

24VDC wide-range input, providing multiple standard DC voltages such as +5V, +12V, -12V

Maximum output power of 330W, meeting the power supply requirements for the entire cabinet monitoring cards

Supports 1+1 redundant hot standby, with automatic uninterrupted switching in case of failure

Automatic protection against overvoltage, short circuit, and overload, and automatic recovery after faults

Multiple groups of LED indicators on the panel, providing intuitive display of input and each output status

6U standard rack plug-in design, maintenance and disassembly do not require downtime

Circuit board with protective coating, capable of withstanding dusty and humid industrial conditions

High conversion efficiency, low power attenuation in high-temperature conditions

Technical Specifications
