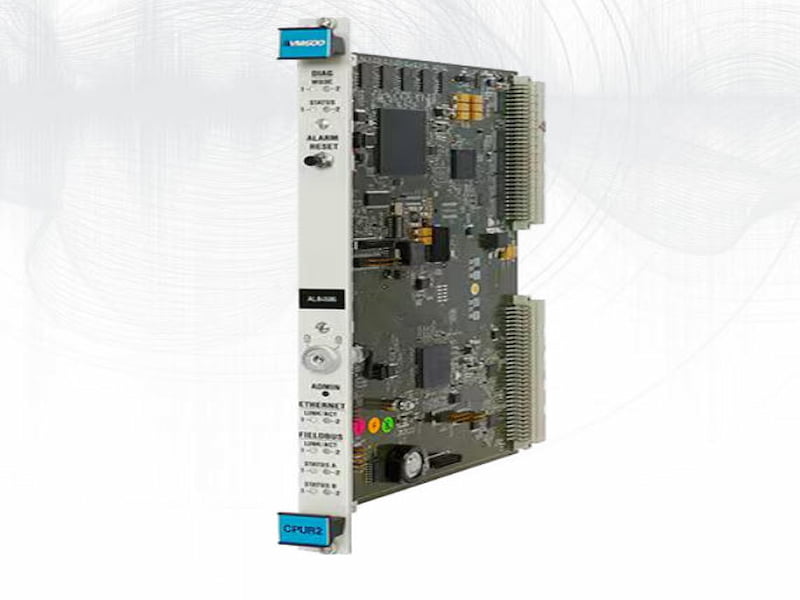

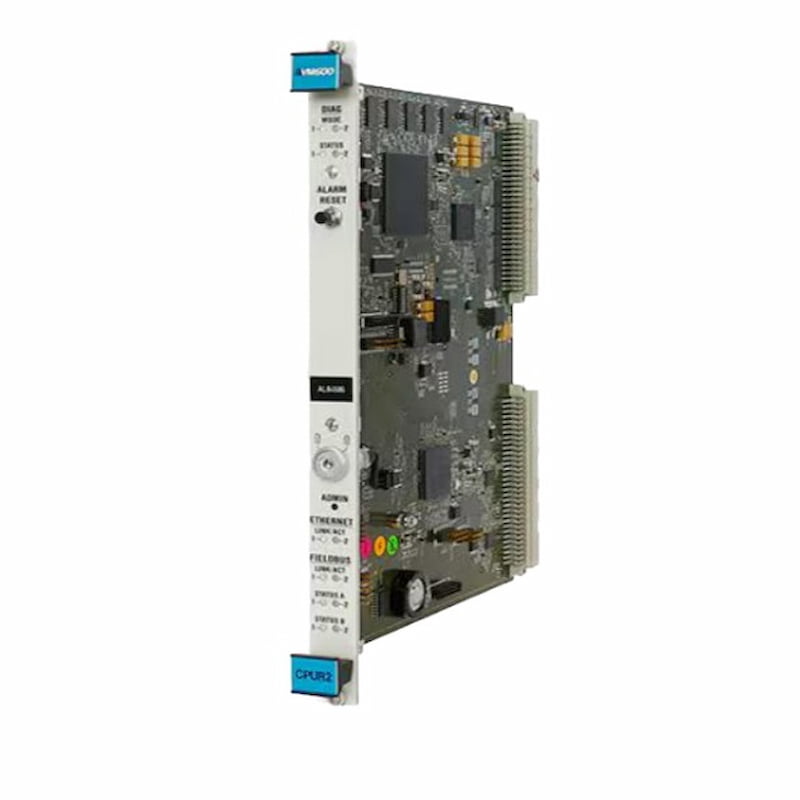

M600 CPUR2 600-026-000-005 Rack Controller and Communications Interface Card

M600 CPUR2 600-026-000-005 Rack Controller and Communications Interface Card

Description

CPUR2 600-026-000-005 is the frame controller and communication interface card of the Meggitt Vibro-Meter VM600 series mechanical condition monitoring system. It needs to be used in conjunction with the IOCR2 input/output card as the core control unit of the VM600 frame, responsible for centralized management, data processing and system communication of all monitoring modules within the frame.

This card supports both Modbus TCP and PROFIBUS DP dual fieldbus protocols. It can be connected to VM600 MPSx and VibroSight® software via Ethernet to achieve "one-click" configuration management of protection cards (such as MPC4) within the frame; it also has functions such as data calculation processing, common alarm reset, and dual relay status output. It is equipped with a plug-in key to ensure system security and provides stable control and communication core for protection and monitoring systems of rotating machinery such as steam turbines and compressors.

Features

• VM600 CPUR2/IOCR2 rack controller and communications interface card pair with support for Modbus TCP and PROFIBUS DP
• “One-Shot” configuration management of protection cards (MPC4) in a VM600 rack using an Ethernet connection to a computer running the VM600 MPSx and VibroSight® software
• Mathematical processing of data to be shared via fieldbus and card pair status (health) information via fieldbus
• Common alarm reset (AR) for protection cards and VM600 MPS rack (CPUR2) security with a removable key
• Two output relays to signal system statuses and alarms
