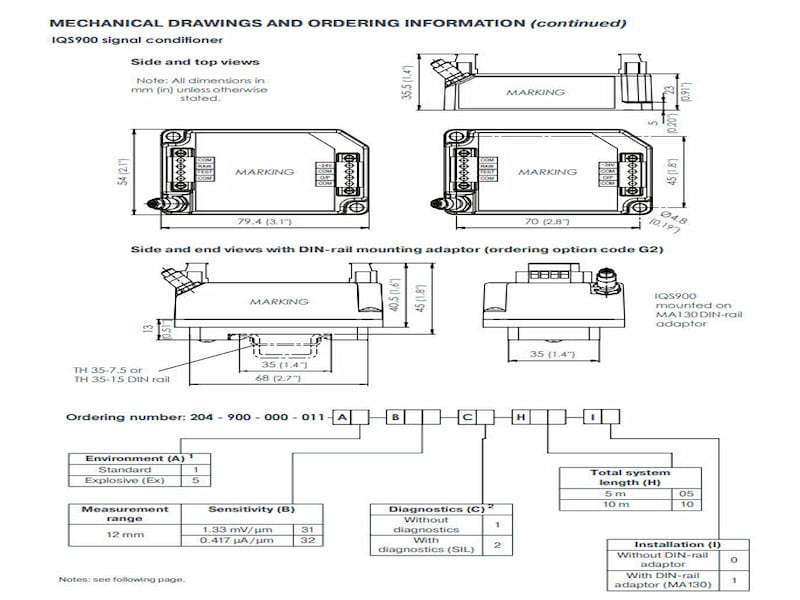

IQS900 204-900-000-011 A1-B31-C1-H10-I0 Signal Conditioner

IQS900 204-900-000-011 A1-B31-C1-H10-I0 Signal Conditioner

Description

IQS900 204-900-000-011 is an eddy current signal conditioner of the IQS900 series. It is specially developed to pair with TQ series eddy current sensors. Adopting high‑frequency modulation and demodulation technology, the unit converts raw sensor displacement and vibration signals into standard voltage or current outputs, enabling high-precision monitoring of shaft vibration, axial displacement and gap status for all types of rotating machinery.

This signal conditioner features robust industrial-grade construction with built-in loop diagnosis functions. It supports flexible configuration of sensitivity and measurement range with ultra-wide frequency response. Certified to SIL 2 safety standards and explosion-proof specifications, it adapts to hazardous industrial environments and meets professional machinery protection and condition diagnostic requirements for power, petrochemical and metallurgical applications.

Features

• Professional signal conditioning for TQ series proximity eddy current sensors
• Accurate shaft vibration, gap and position measurement for machinery protection and condition monitoring
• Ultra-wide frequency response from DC to 20000 Hz with configurable sensitivity and measuring range
• Supports current output for long-distance transmission and voltage output for medium-distance signal transmission
• Explosion-proof certified for deployment in potentially explosive hazardous areas
• Compliant with SIL 2 (IEC 61508) and Cat 1 PL c (ISO 13849) functional safety standards
• Fully conforms to API 670 5th edition industry specification
• Equipped with raw signal output and test input ports to support on-site system inspection and calibration

Technical Specifications
