IPC704 244-704-000-511 A2-B07-C90-D5-E10-F10000-G2-H0-I0 Signal Conditioner
The IPC707 (244-707-000-012) is a signal conditioner for industrial monitoring systems, converting sensor signals for precise measurement.
Marca :
VMNúmero de pieza :
IPC704 244-704-000-511Descripción :
A2-B07-C90-D5-E10-F10000-G2-H0-I0 Signal ConditionerOrigen :
SwitzerlandCondición :
NewDimensión :
79.4 mm x 54 mm x 36.5 mmPeso :
170 gPago :
Bank Transfer
IPC704 244-704-000-511 A2-B07-C90-D5-E10-F10000-G2-H0-I0 Signal Conditioner
Description
Signal conditioning for CA accelerometers and CP dynamic pressure sensors.
Vibration or dynamic pressure measurement for machinery protection and/or advanced condition monitoring.
Very wide frequency range (0.5 to 20000 Hz), with configurable high-pass and low-pass filters, independent of transfer function.
Configurable transfer function (sensitivity and units), with optional integrator to provide a velocity output.
Current output for long-distance signal transmission or voltage output for medium-distance signal transmission.
Certified for use in potentially explosive atmospheres (Ex) and/or safety-related applications (SIL).
Features
Signal conditioning for CA accelerometers and CP dynamic pressure sensors.
Vibration or dynamic pressure measurement for machinery protection and/or advanced condition monitoring.
Very wide frequency range (0.5 to 20000 Hz), with configurable high-pass and low-pass filters, independent of transfer function.
Configurable transfer function (sensitivity and units), with optional integrator to provide a velocity output.
Current output for signal transmission over long distances or voltage output for signal transmission over medium distances.

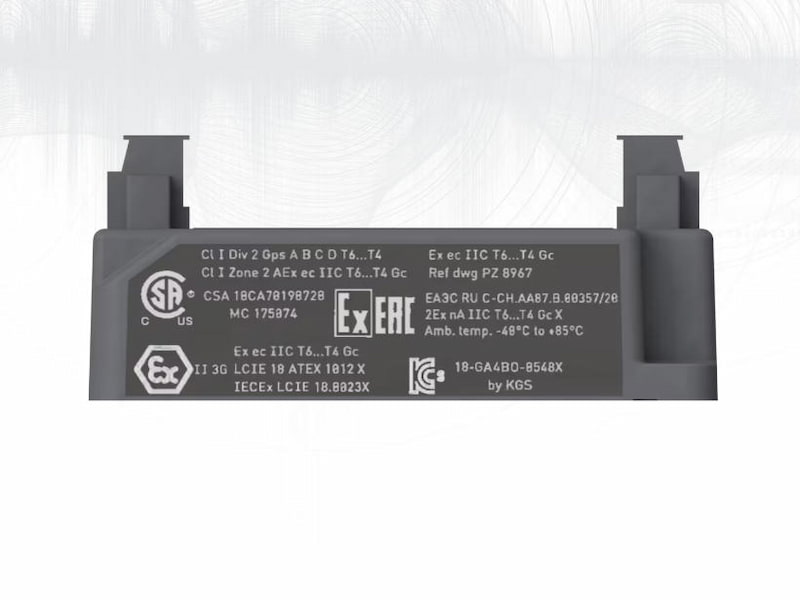

Certified for use in potentially explosive atmospheres (hazardous areas).
Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and Cat 1 PL c in accordance with ISO 13849.
Technical Specifications
| Manufacturer | VM |
| Part Number | IPC704 |
| Ordering Information | 244-704-000-511 |
| Product Catalog | Vibration Monitoring |
| Description | Signal Conditioner |
| Voltage | 24 Vdc |
| Current | 25 mA |
| Dimensions | 79.4 mm x 54 mm x 36.5 mm |
| Weight | 170 g |
