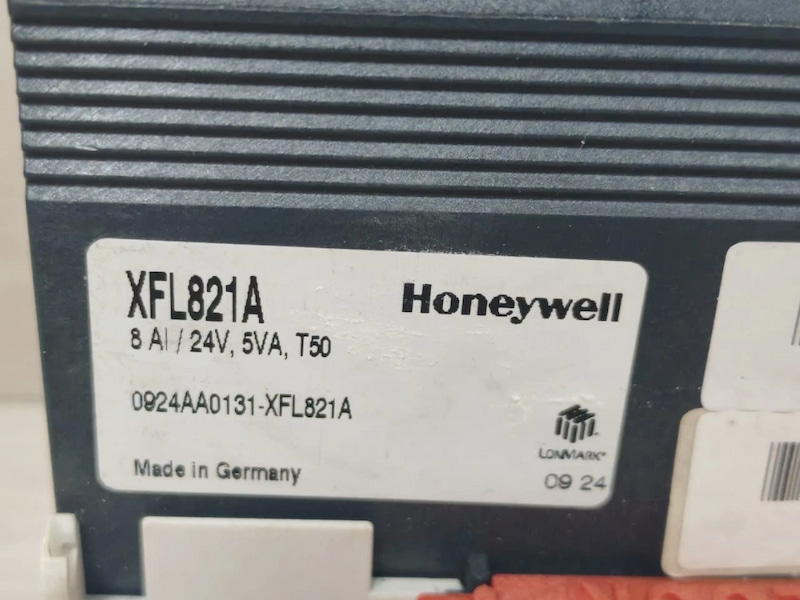

Honeywell XFL821A Analog Input module (with 8 analog inputs)

Honeywell XFL821A  Analog Input module (with 8 analog inputs)

Description

The pluggable Excel Web LON Analog Input Module, with 8 analog inputs, is available in the following versions:

• XFL821A LONWORKS Bus Analog Input Module He is installed with the XS821-22 or XSU821-22 Terminal Socket (incl. one connector bridge and one swivel label). Accessory disconnector module: XS812

Features

• 0…10 Vdc, 2…10 Vdc without pull-up
• 0…10 Vdc with pull-up (linear graph, e.g. used for wall module connection)
• 0/4…20 mA, needs 499 Ω resistor in parallel
• NTC20kΩ (-50…+150 °C, default)
• NTC10kΩ (-30…+100 °C)
• PT1000-1 (-50…+150 °C)
• PT1000-2 (0…+400 °C)
• NI1000TK5000 (-30…+130 °C)
• PT3000 (-50…+150 °C)
• BALCO500 (-30…+120 °C)
• Binary input
• 16-bit resolution
• Configurable offset per input
• Auxiliary voltage: 10 Vdc, IMAX = 5 mA
• Sensor failure detection
