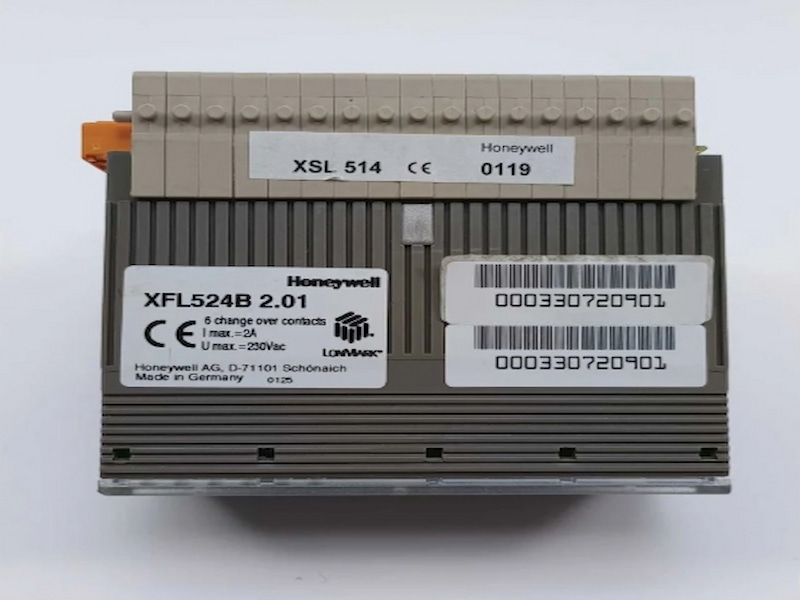

Honeywell XFL524B Digital Output Module

Honeywell XFL524B Digital Output Module

Description

The digital output module has six isolated change-over contacts which can be connected to actuators or other switchable devices.

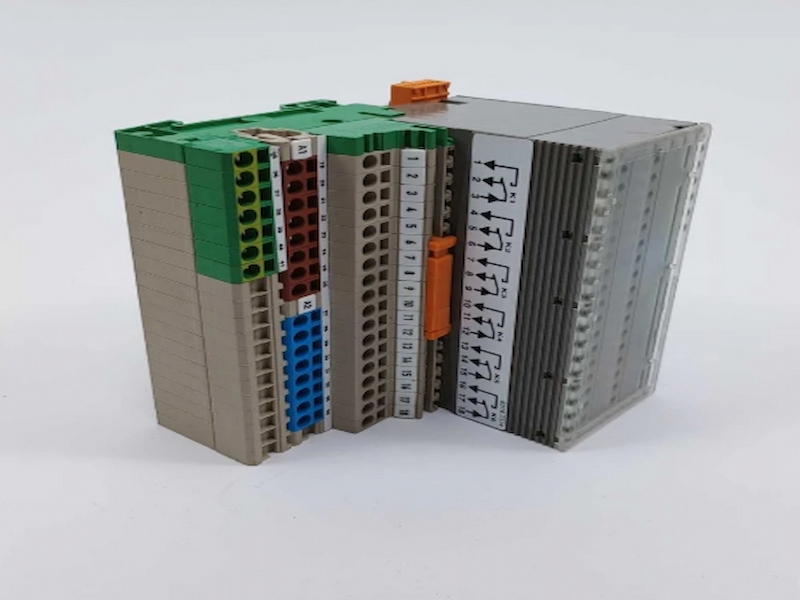

The unit plugs into the XSL514 Terminal Block and can be inserted and removed without disturbing other units on the bus. Terminals 1 through 18 are switched according to Fig. 14. Six LEDs are located on top of the module. The module address is set using the rotary HEX switch (in the case of applications prior to CARE 4.0).

• Six isolated change-over contacts
• Max. voltage Umax = 230 Vac per output
• Max. current Imax = 2 A per output
• LED per channel
• OFF: LED off
• ON: LED illuminated (yellow)
• Green power LED (L1) and red LONWORKS status LED (L2)
• Cycle time 1 sec with CPU
