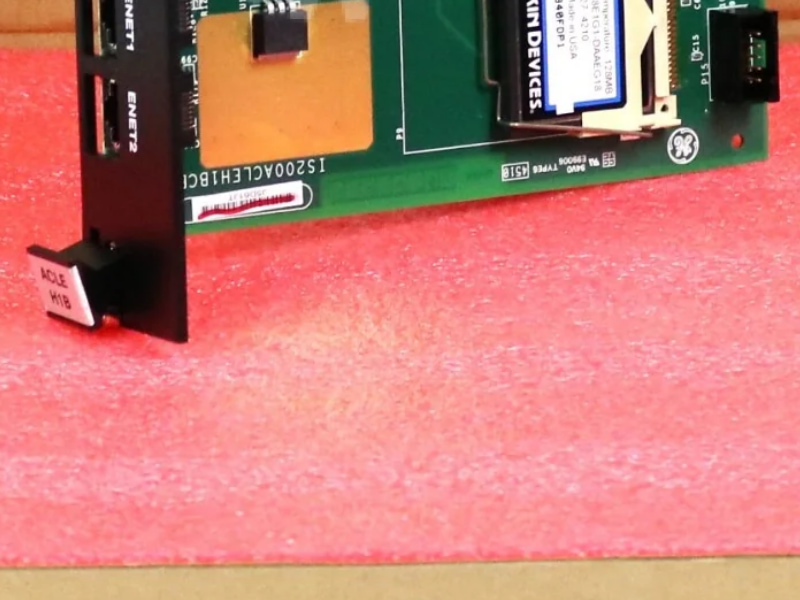

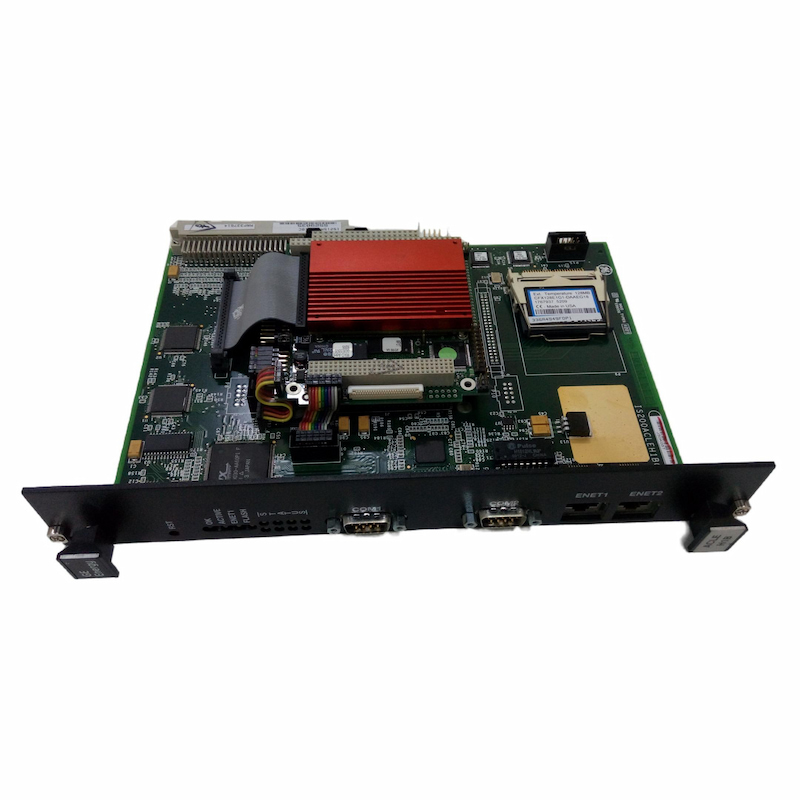

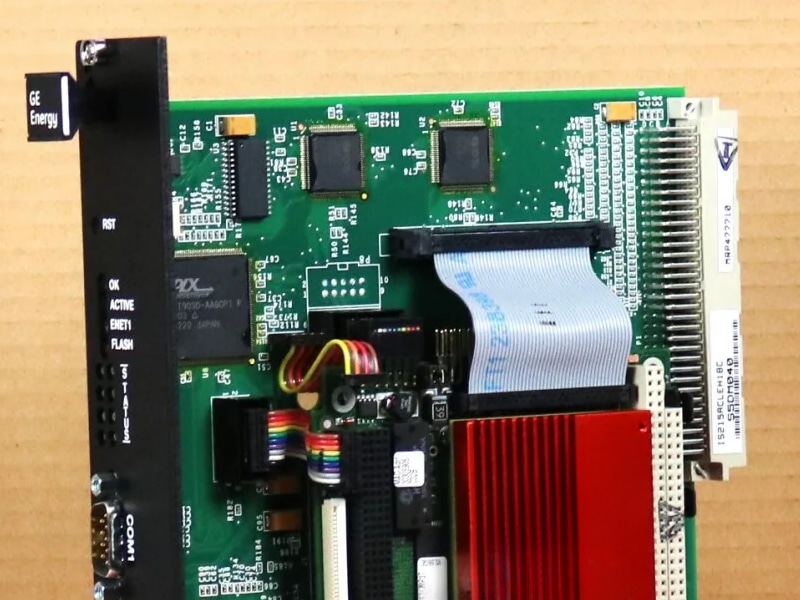

GE IS215ACLEH1B Application Control Layer Module

GE IS215ACLEH1B Application Control Layer Module

Functional Description

The IS215ACLEH1B Application Control Layer Module (ACL) is a microprocessorbased master controller

used to perform multiple duties over communication networks such as Ethernet and ISBus. The ACL mounts

in a standard Innovation Series drive or EX2100 exciter board rack and occupies two half-slots. The ACL

and board rack are located in the control cabinet. In drive applications, the ACL's P1 connector (4-row 128-

pin) plugs into the Control Assembly Backplane Board (CABP). In the EX2100 exciter, the ACL mounts in the

Exciter Backplane (EBKP).

Features

• Central processing unit (CPU)

• Peripheral component interconnect (PCI) controller

• 128 K byte level 2 cache

• 8 MB dynamic random access memory (DRAM)

• 4 MB flash memory basic input/output system (BIOS)

• Ethernet

• Bus target interface

• Serial ports COM1 and COM2

• Ethernet

Technical Specifications
