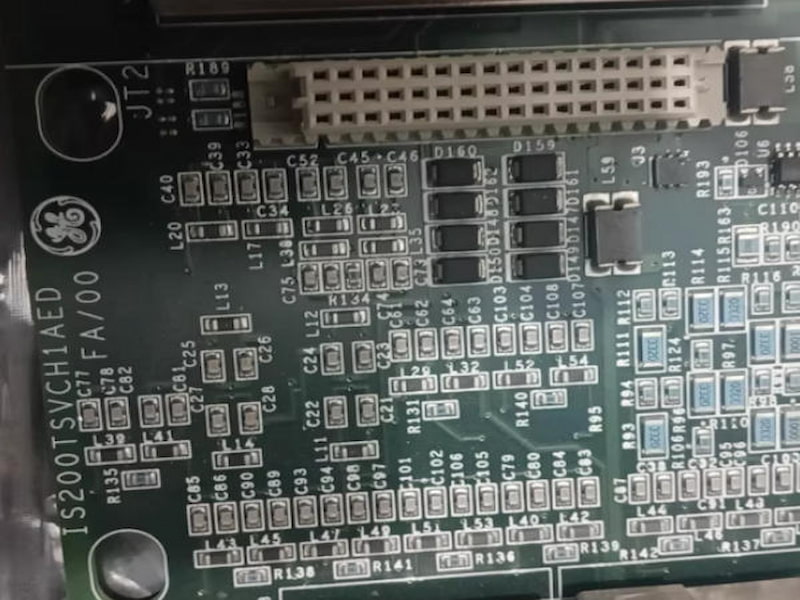

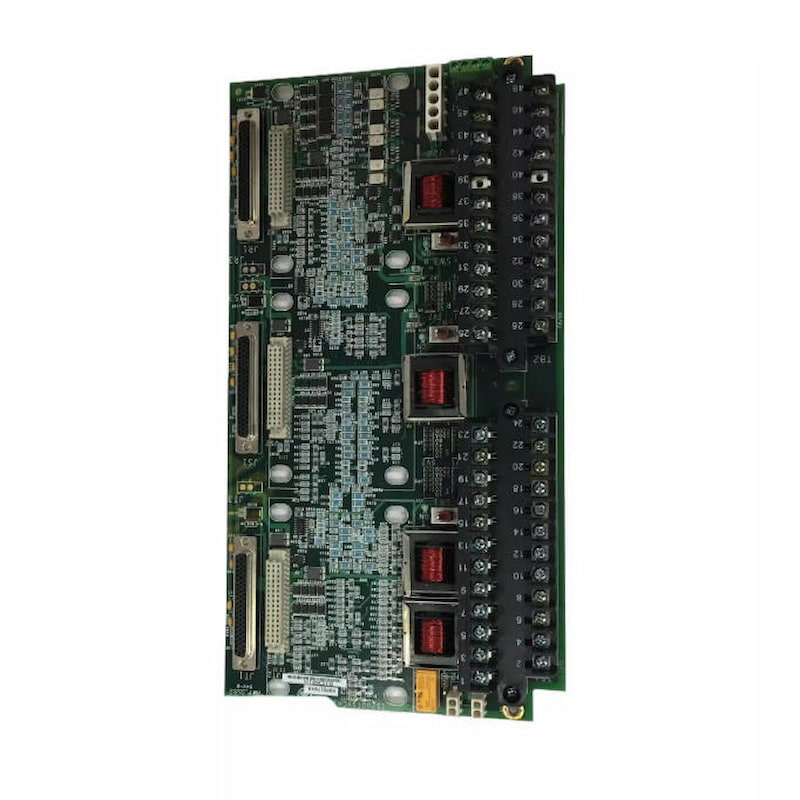

GE IS200TSVCH1AED Servo I/O Terminal Board

GE IS200TSVCH1AED Servo I/O Terminal Board

Description

GE IS200TSVCH1AED is a dedicated servo I/O terminal board for the GE Mark VI/Mark VIe control system, used for controlling the marine servo valves and collecting LVDT valve position feedback signals. It is the core interface module of the hydraulic actuator.

This board supports multiple LVDT inputs and bidirectional servo current outputs, and features signal isolation, anti-interference, and fault-safe logic. It can stably achieve high-precision valve position control in harsh working conditions such as power plants and gas/turbine engines.

Features

• Suitable for GE Mark VI/Mark VIe Speedtronic control system
• Servo I/O and engine stop valve control (TSVC)
• Support for LVDT/RVDT position feedback signal acquisition
• Bidirectional servo valve control output, 16-bit high-precision positioning
• Electrical isolation of signals, strong anti-interference capability
• Support for safe shutdown and redundant architecture

Technical Specifications
