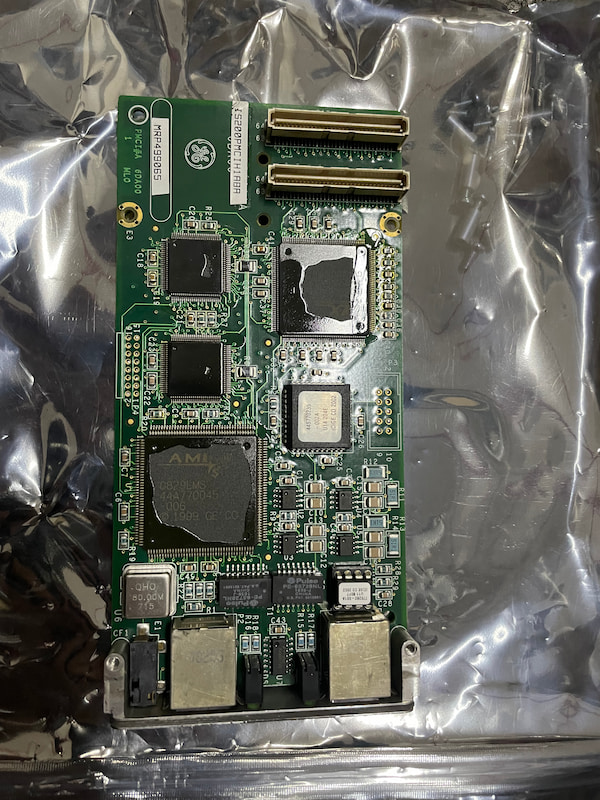

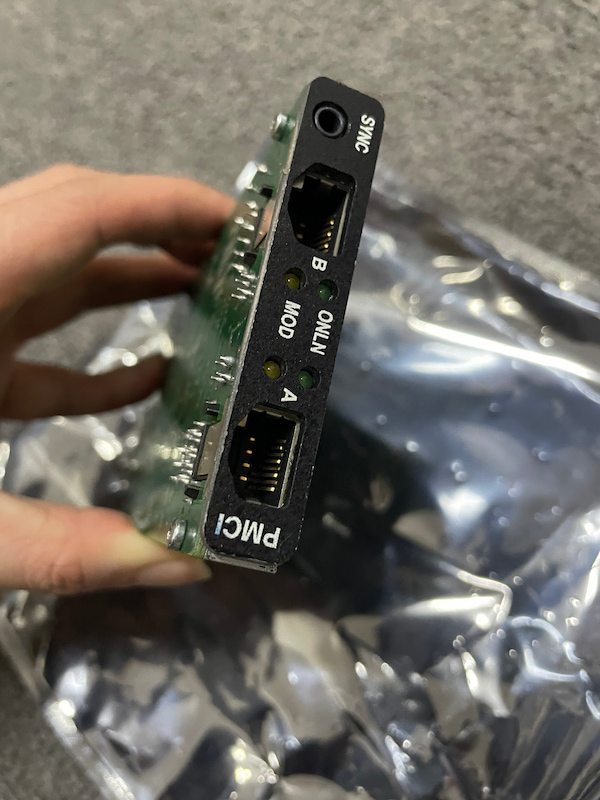

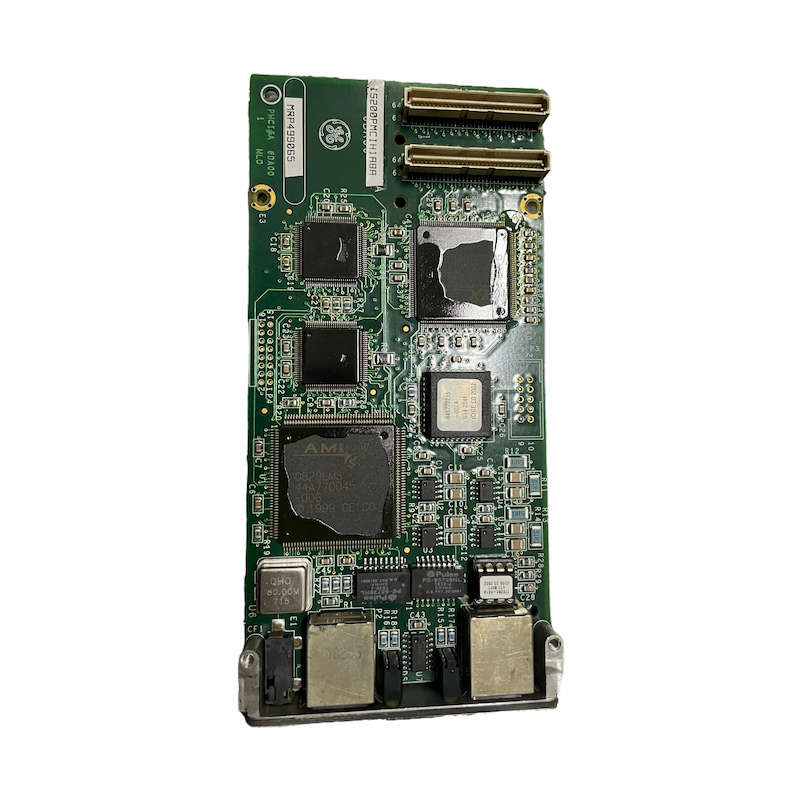

GE IS200PMCIH1A PCI Mezzanine Card

GE IS200PMCIH1A PCI Mezzanine Card

Functional Description

The IS200PMCIH1A contains specific controller hardware functions as follows:

• Power supply monitoring

• Flash backed SRAM

• IONet Ethernets

• Ethernet physical layer packet snooping for precision time synchronization

The IS200PMCIH1A board plugs onto one of the PMC sites and communicates to the processor board

through the PCI bus. The PCI interface on the PMC is PCI Rev 2.2 compliant and supports both 3.3 V and 5 V

signal levels.
