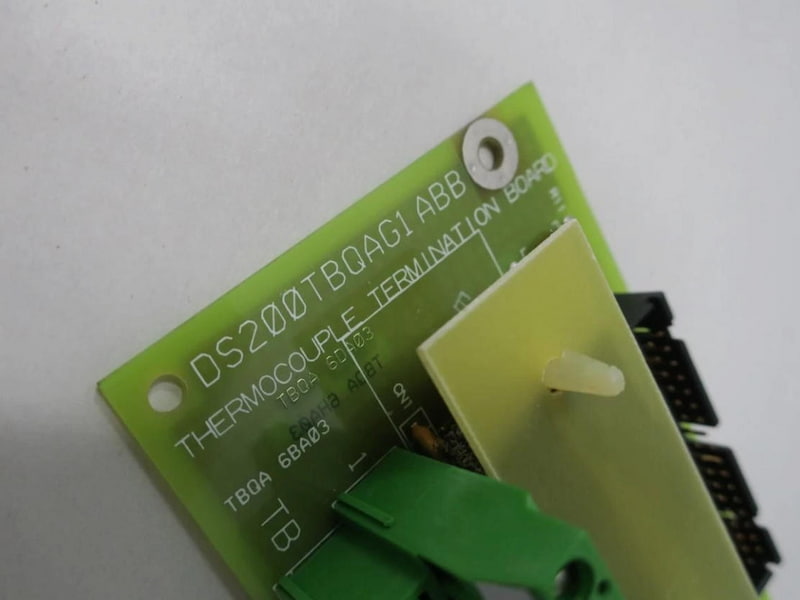

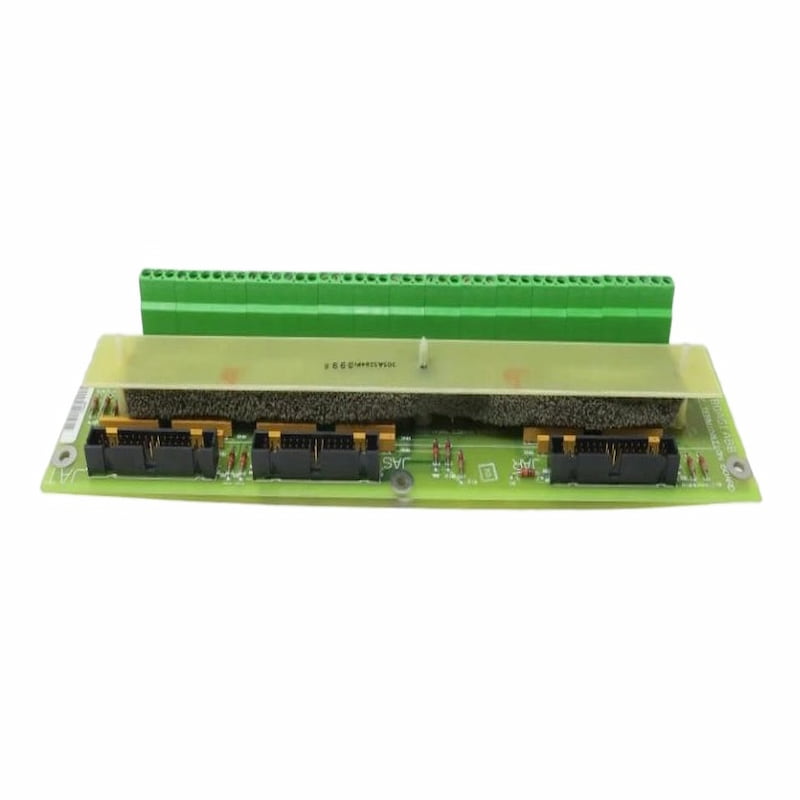

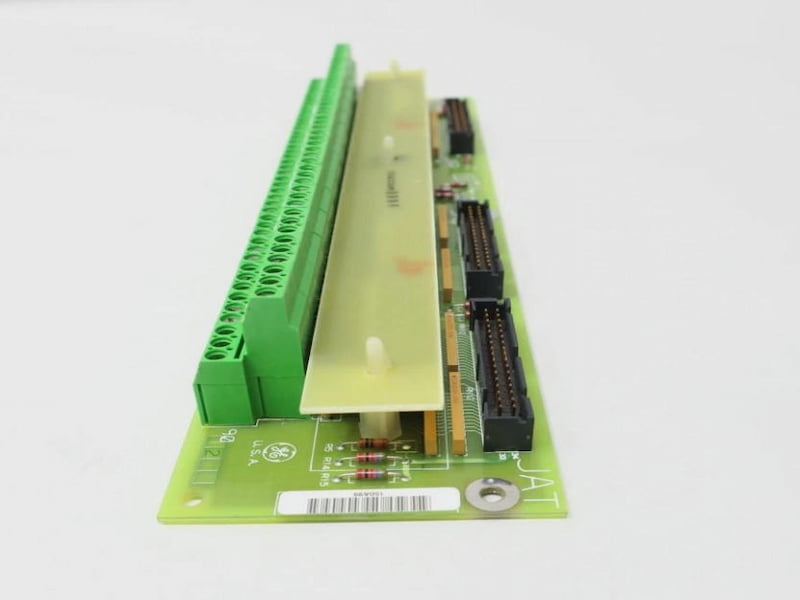

GE DS200TBQAG1ABB RST Terminal Board

GE DS200TBQAG1ABB RST Terminal Board

Description

DS200TBQAG1ABB is a RST thermocouple signal terminal board specifically designed for the GE Mark V Speedtronic turbine control system. It is a core signal connection module of the system.

This terminal board is used for wiring, isolation and surge protection of the three-redundant core thermocouple temperature signals. It can process the weak on-site temperature signals and transmit them to the analog input board for transmission, ensuring the stability and reliability of the gas/turbine generator temperature monitoring loop.

Features

Compatible with GE Mark V Speedtronic turbo control system

RST triple-redundant core area thermocouple signal terminal processing

Signal isolation, surge protection and fault diagnosis functions

Industrial-grade wide temperature design, suitable for strict conditions in power plants

Plug-and-play, facilitating system maintenance and replacement

Technical Specifications
