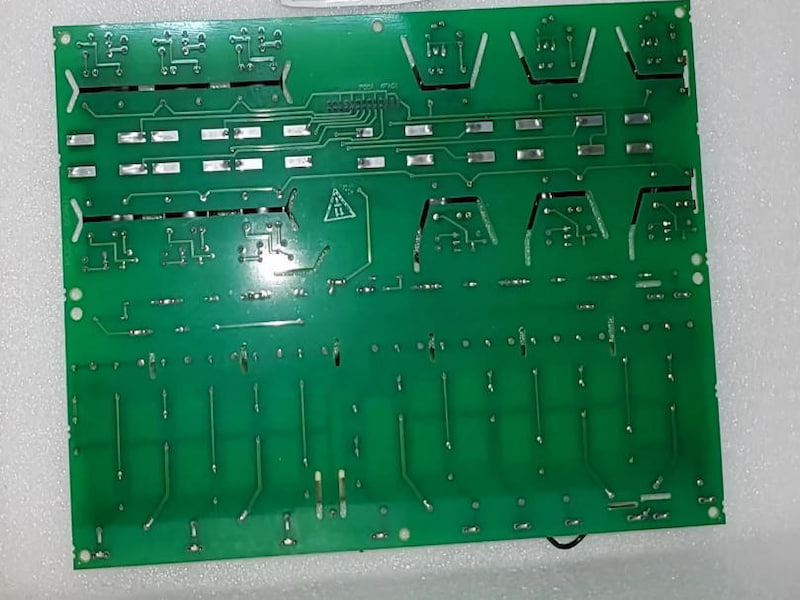

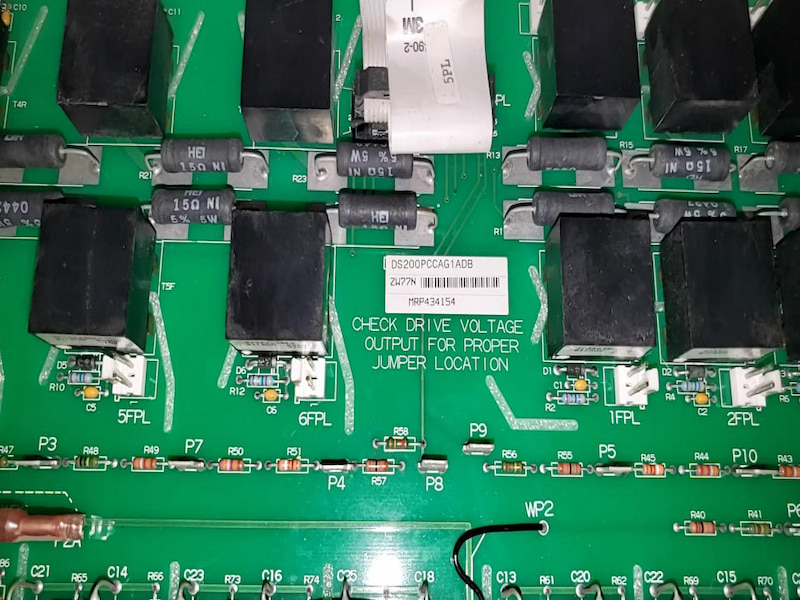

GE DS200PCCAG1ADB Power Connect Card

GE DS200PCCAG1ADB Power Connect Card

Description

GE DS200PCCAG1ADB is a dedicated power connection card (PCCA) for GE Mark V turbine control systems. Serving as an interface module between the drive control and SCR power bridge, it transmits gate trigger signals and ensures reliable power loop communication.

This board integrates AC/DC buffering circuits to suppress voltage spikes and protect SCRs and drive components. Featuring standard interfaces and wiring terminals, it is compatible with high-power drive systems such as gas turbines and steam turbines. Its industrial-grade design ensures stable and durable operation.

Features

• For GE Mark V Speedtronic Turbine Control Systems
• Signal interface between drive control and SCR power bridge
• Transmits forward/reverse gate trigger pulse signals
• Built-in AC/DC buffering circuitry to suppress voltage spikes
• Standard interface design for seamless communication with power supply boards
• Industrial-grade reliability for power plants and heavy-duty drive applications

Technical Specifications
