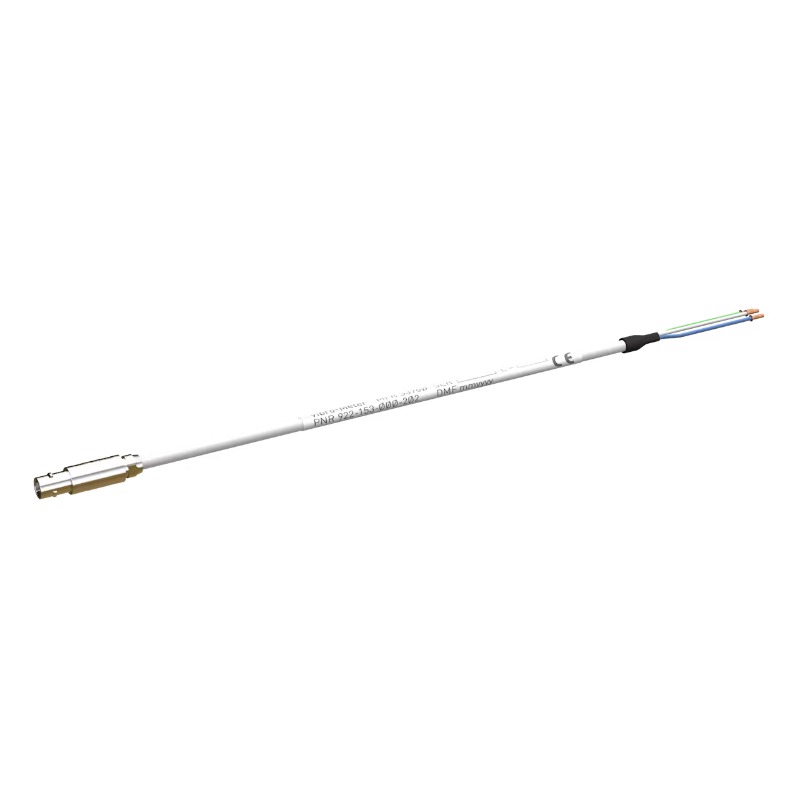

EC153 922-153-000-202 Cable Assembly

EC153 922-153-000-202 Cable Assembly

Functional Description

The EC153 is a high-quality, high-reliability cable assembly for use with the CA901, CP103, CP21x vibration

sensors (accelerometers using external signal conditioners).

It's for use in harsh environments characterised by high temperatures and/or hazardous areas (potentially

explosive atmospheres).

Features

· High-quality, reliable cable assembly for CA901, CP103, CP21x vibration systems

· K205A low-noise cable with PTFE outer sheath (Ø4.2 mm)

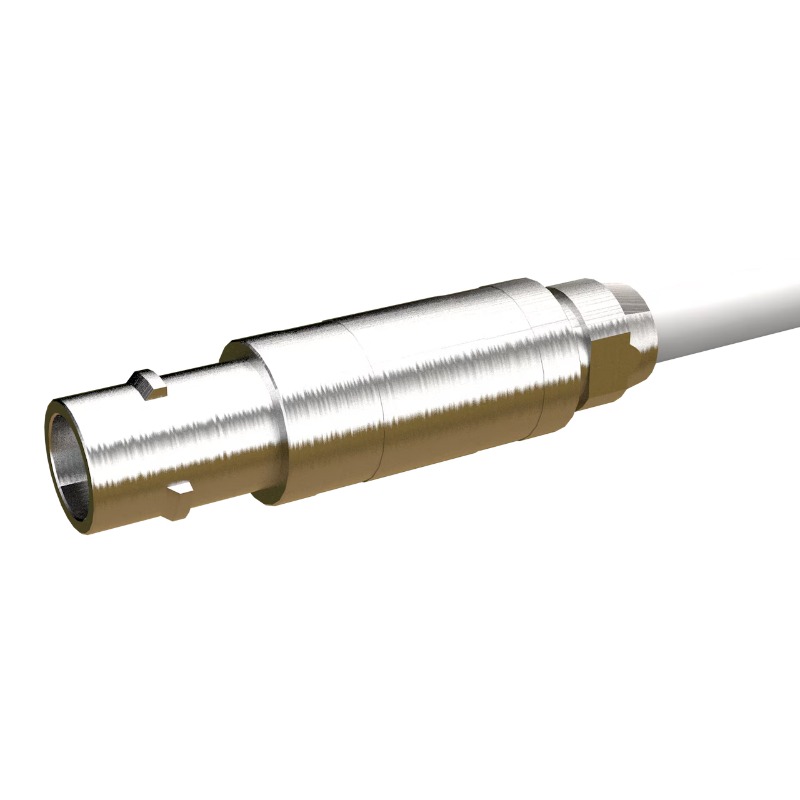

· Push-pull connector (VM LEMO type 0) to flying leads

· 2-wire, with shield

Technical Specifications
