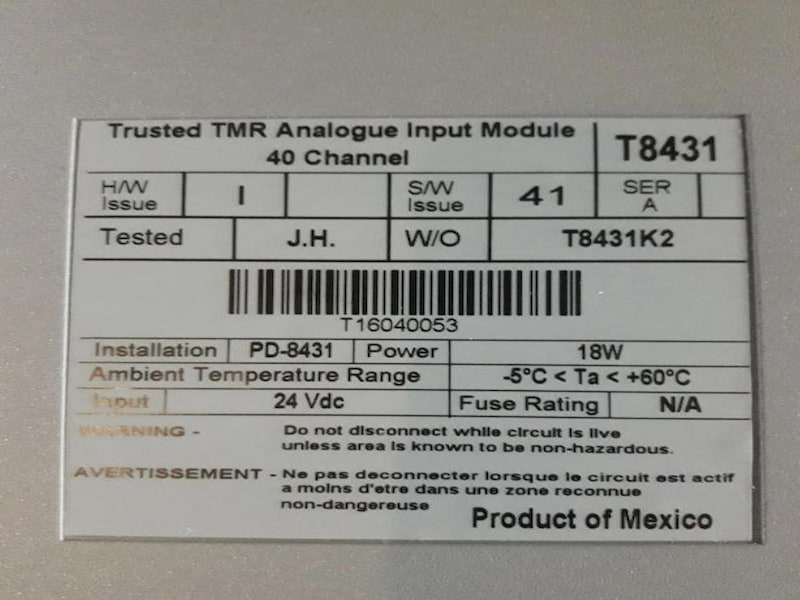

Allen-Bradley T8431 Analog Input Module

Allen-Bradley T8431 Analog Input Module

Description

T8431 is a TMR triple-redundant analog input module of Allen-Bradley ICS Triplex Trusted safety system. It is specially designed for SIS safety instrumented systems and can achieve high-precision acquisition and transmission of 40 channels of 24Vdc analog signals, providing safe and reliable signal input for industrial critical processes.

This module is equipped with independent channel line monitoring, online hot-swappable technology and photoelectric isolation technology, and has complete fault diagnosis and fault-tolerant capabilities. It is widely used in high-security scenarios such as oil and gas, petrochemical, and power industries, meeting the operation and spare parts replacement requirements of SIL 3/SIL 4 level systems.

Features

Suitable for ICS Triplex Trusted safety control system, adopting TMR triple redundancy architecture

40 channels of 24Vdc analog signal acquisition, supporting independent line fault monitoring

Channel-level optoelectronic isolation, with open circuit and short circuit fault detection functions

Support for online hot-swappable replacement without interrupting system operation

Integrated SOE event sequence recording, facilitating diagnosis and maintenance

Meets high security level industrial scenarios, compatible with SIS system spare parts usage
