Description

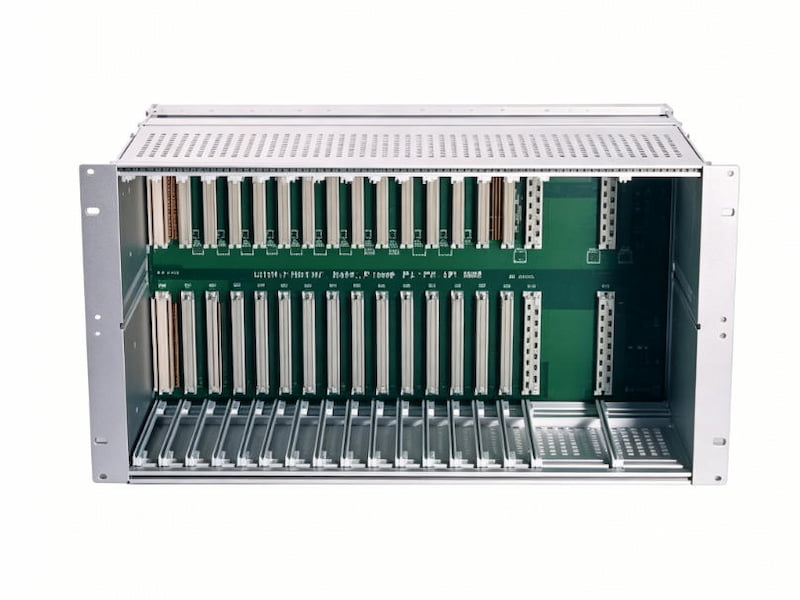

ABE042 (Material Number 204-042-100-011) is a standard 19-inch 6U industrial monitoring chassis. The entire unit integrates an integrated multi-bus backplane, compatible with all power, protection, acquisition, communication, and relay modules of the entire set of monitoring systems. The backplane integrates VME, speed, raw signals, and collector open-circuit multi-bus, enabling power supply for each module and high-speed signal communication. It can be equipped with a single or dual redundant power supply unit.

The chassis is reserved with 15 standard card slots, supporting the mixed assembly of wide and narrow modules. The backside is equipped with a power status detection relay, which provides real-time feedback on the power supply operation status. The chassis adopts a stable metal structure and supports embedded installation in cabinets, suitable for large-scale integrated monitoring and protection systems for steam turbines, compressors, etc. in the power generation, oil and gas industries.

Features

19-inch standard 6U rack, with built-in multi-functional integrated communication power supply backplane

Up to 15 standard card slots, compatible with all series of monitoring, protection, and communication components

Supports single/double power module redundancy configuration, with a maximum power supply load of 330W for the entire machine

Integrated multi-channel system-specific bus, with high-speed data interaction without interference between modules

Back panel power detection relay, providing intuitive feedback on the power supply status of the entire machine

Metal reinforced enclosure, supporting embedded installation of control cabinets

Compatible with both AC and DC input specification power modules

Suitable for long-term industrial indoor constant temperature cabinet operating environment

Technical Specifications
