The ABE042 204-042-000-011 is 6U system rack for industrial rotating machinery monitoring hardware installation
Marca :
VMNúmero de pieza :
ABE042 204-042-000-011Descripción :
System RackOrigen :
SwitzerlandCondición :
NewDimensión :
40 mm x 40 mm x 24 mmPeso :
385 gPago :
Bank Transfer

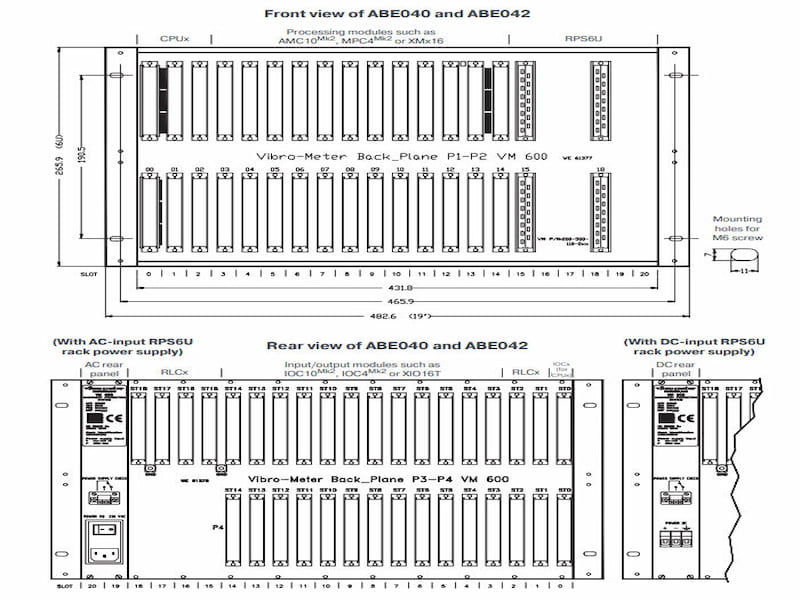

ABE042 204-042-000-011 System Rack
Description
VM600-ABE042 (Model 204-042-000-011) is a 19-inch 6U standard chassis specifically designed for rotating equipment monitoring systems. It features an integrated VME backplane and is used to uniformly install monitoring processing cards, communication controllers, relay modules, and power units, enabling power supply and signal bus intercommunication among various vibration, speed, and temperature acquisition cards. It is widely used in power plants, petrochemicals, and oil and gas industries for equipment condition monitoring and safety protection complete sets of equipment.
The chassis adopts a high-strength aluminum alloy one-piece molding structure, supports dual power supply redundancy installation, and can accommodate up to 12 sets of monitoring cards. The rear part is equipped with a power supply detection relay, which provides real-time feedback on the power supply operation status. It is compatible with standard industrial cabinets for embedded installation, and the backplane integrates multiple dedicated signal buses, allowing for the mixed installation of equipment protection and online condition monitoring hardware. The wide-temperature body structure is suitable for complex working conditions with multiple dust and electromagnetic interference in the field, ensuring the long-term stable operation of the entire monitoring system.
Features
19-inch 6U standard industrial chassis, compatible with the entire hardware assembly for rotating unit monitoring
Built-in VME integrated backplane, uniformly completing power supply for cards and multi-channel signal bus interconnection
Supports installation of dual redundant power modules to enhance the reliability of the entire system's power supply
Can accommodate up to 12 monitoring processing cards, allowing for mixed deployment of protection and status monitoring hardware
The rear of the chassis comes with a power detection relay, providing a clear indication of abnormal power supply
Aluminum alloy sturdy body, suitable for harsh industrial environments such as power, chemical, and oil and gas industries
Standard rack installation dimensions, can be directly installed in a universal 19-inch industrial control cabinet
Technical Specifications
| Manufacturer | VM |
| Part Number | VM600-ABE042 |
| Ordering Information | 204-042-000-011 |
| Product Catalog | Vibration Monitoring |
| Description | System Rack |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 40 mm x 40 mm x 24 mm |
| Weight | 385 g |
