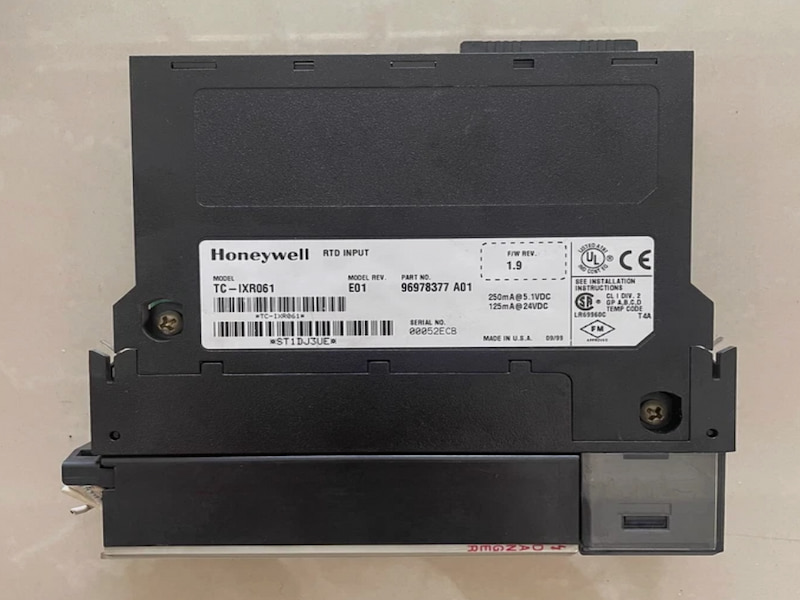

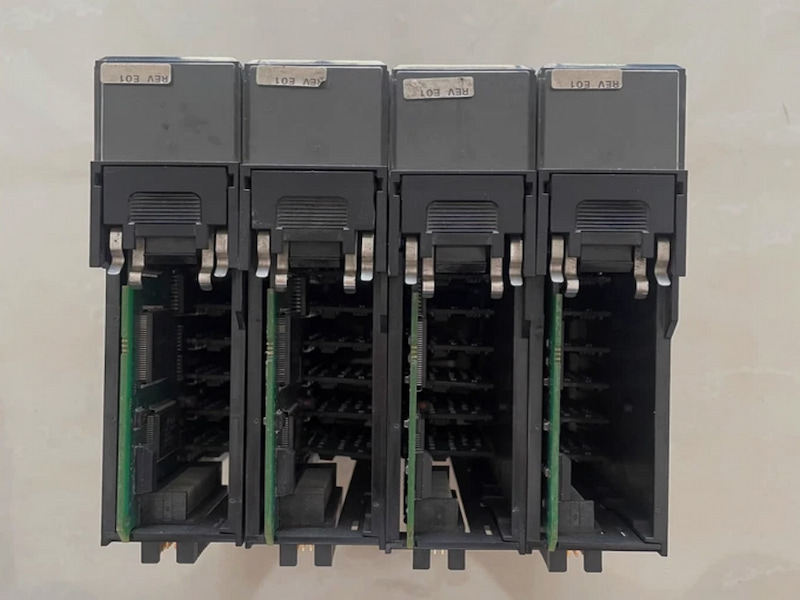

Honeywell TC-IXR061 RTD Input, 6-Point Module (Isolated)

Honeywell TC-IXR061 RTD Input, 6-Point Module (Isolated)

Description

Number of Points：6 galvanically isolated channels

Signal Input Ranges：1-487Ω, 2-1000Ω, 4-2000Ω, 8-4020Ω

Sensors Supported：

Resistance 1-487 Ω

100, 200, 500,1000 Ω Platinum, Ω = 0.00385

100, 200, 500,1000 Ω Platinum, Ω = 0.003916

120 Ω Nickel, Ω = 0.00672

100, 120, 200, 500 Ω Nickel, Ω = 0.00618

10 Ω Copper

Accuracy：0.1% FS @ 25°C

Module Update Rate for All Channels：50 milliseconds

Settling Time to 5% of Full Scale：Less than 80 milliseconds

Open Wire Detection：Out of Range reading reported

Open Wire Detection Time：Less than 5 seconds

Common Mode Rejection ：120 dB @ 60 Hz, 100 dB @ 50 Hz

Channel Bandwidth ：DC to 15 Hz (-3 db)

Normal Mode Noise Rejection ：60 dB @ 60 Hz

RFI Immunity：Error of less than 2.0% of FS at 10 V/m, 27 to 1000 MHz

Input Offset Drift with Temperature ：10 milliohms/C typical

Gain Drift with Temperature：50 ppm/°C typical

Power Dissipation：4.3 W max

Isolation Voltage：

  Channel to channel：100% tested at 2546 VDC for 1s

  User to system：100% tested at 2546 VDC for 1s

Connection Terminal Blocks：TC-TBNH, 20-position terminal block
