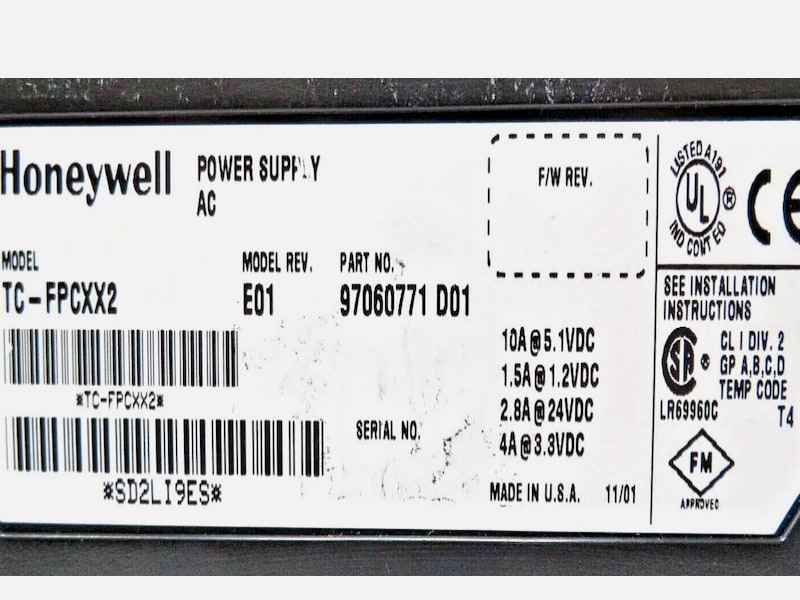

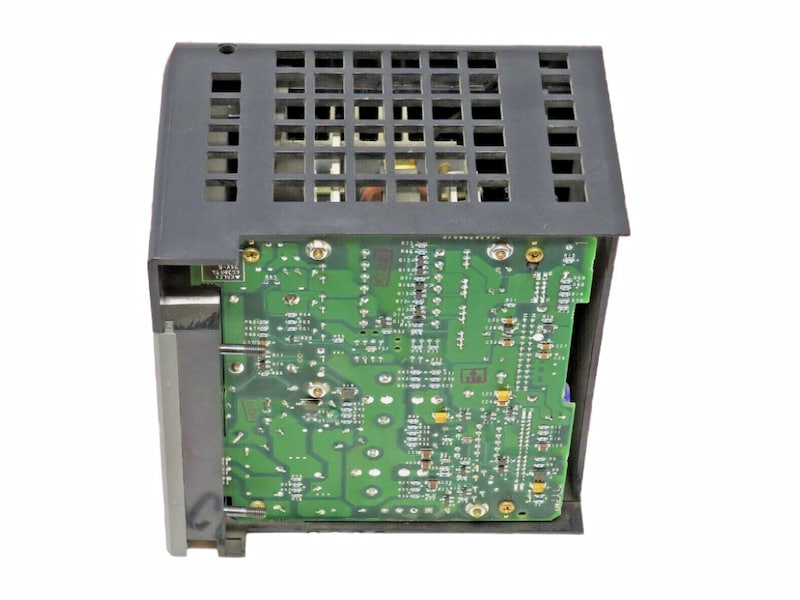

Honeywell TC-FPCXX2 Power Supply Module

Honeywell TC-FPCXX2 Power Supply Module

Description

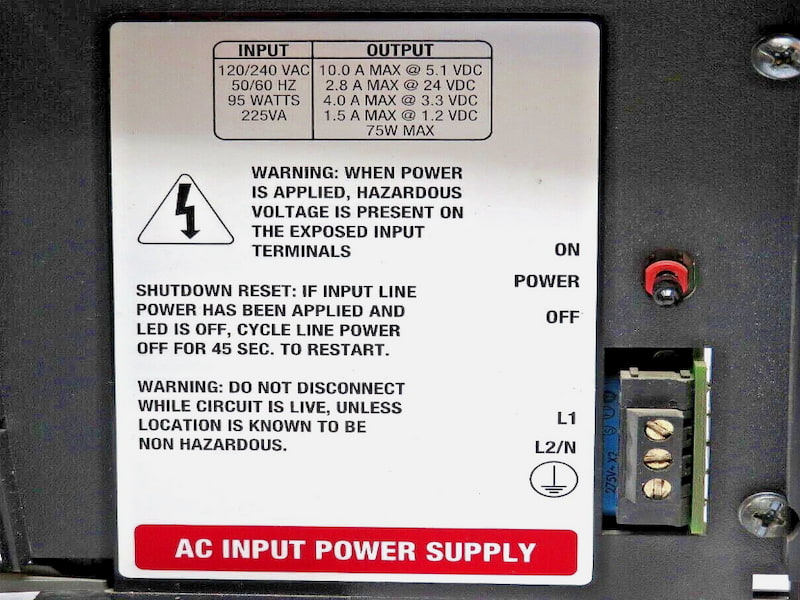

Input Voltage Range：85-132 VAC or 170-265 VAC (selectable)

Input Power²：150 VA, 92 W

Maximum Inrush Current：15 A

Frequency Range：47-63 Hz

Total power output maximum, watts：70W@60 C

Backplane Output Current, Maximum³：

• 1.5A@1.2V
• 4A@3.3V
• 10A@5.1V
• 2.8 A @ 24.0 V

x4=(

Wiring：#14 AWG (1.4 mm)

Location：Left side of chassis (does not consume a slot)

Feature

1. Input may drop to 16 V for a maximum of 2 minutes each hour for motor starting.

2. Note earlier models were rated as follows: TC-FPCXX1 -- 55 W @ 60 C; 70 W @ 45 C and TC-FPDXX1 -- 50W@60 C;70W@40 C.

3. The combination of a output power (5 V backplane, 24 V backplane, 3.3 V backplane and 1.2 V backplane) cannot exceed 70 W.

4. This fuse is intended to guard against fire hazard due to short circuit conditions and may not protect the power supply from d ge under overload conditions
