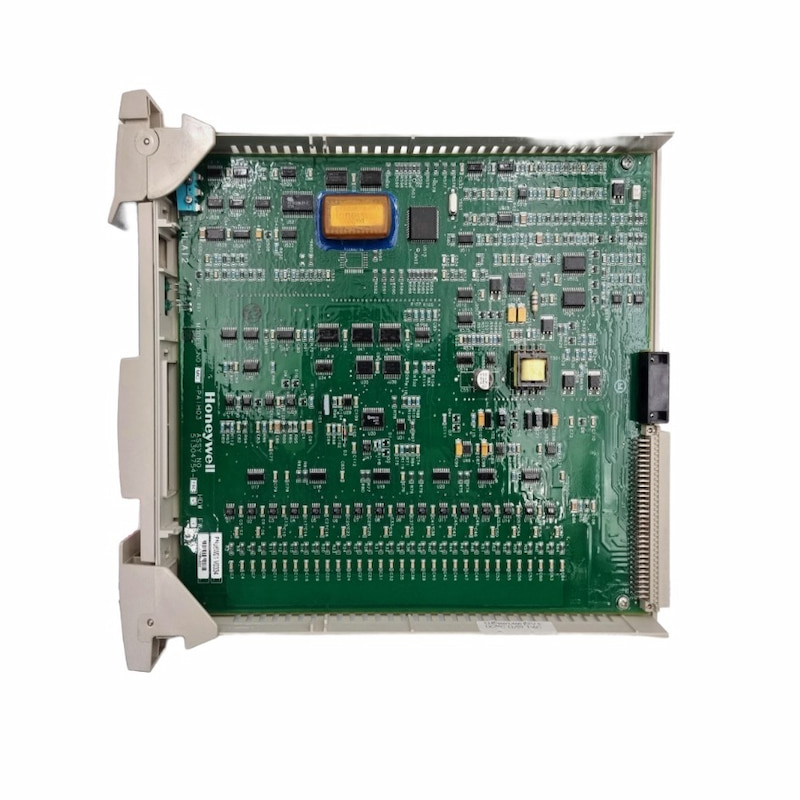

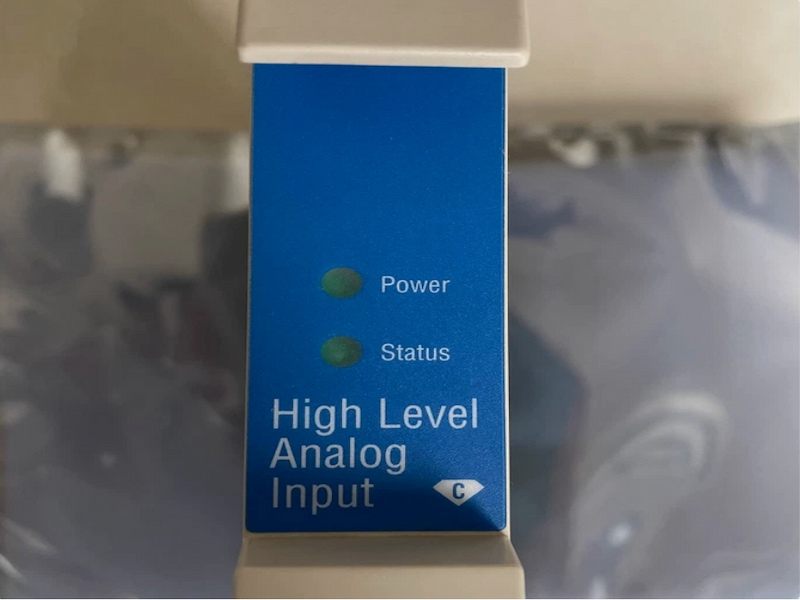

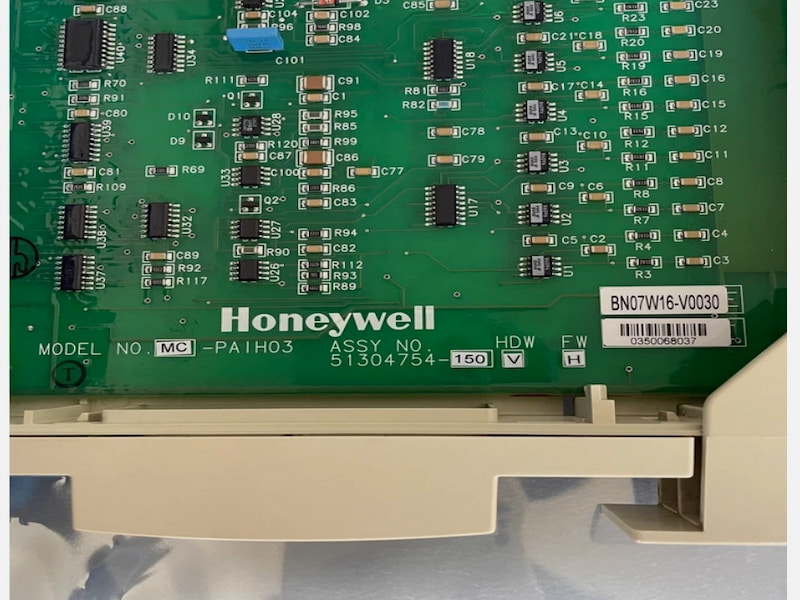

Honeywell MC-PAIH03 51304754-150 High Level Analog Input (HLAI)

Honeywell MC-PAIH03 51304754-150 High Level Analog Input (HLAI)

Description

Input Type: Voltage, current (2-wire or self-powered transmitters)

Input Channels: 16 differential input channels

Input Range:0 to 5 V,1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250)

Common Mode Rejection Ratio: 70 dB (dc to 60 Hz, 500 source imbalance)

Common Mode Voltage: -6 to +5 V peak (dc to 60 Hz)

A/D Converter Resolution: 16 bits (14 bits used)

Normal Mode Rejection Ratio: 32 dB (at 60 Hz)

Maximum Normal Mode Input: + 30 Volts

Crosstalk: 60 dB (dc to 60 Hz,channel-to-channel)

Inputlmpedance(Voltage Inputs):>10 M powered

Maximum Input Voltage: + 30 Volts

Input Scan Rate: 4 samples per second per channel. All channels sampled within a 250 ms window

Accuracy: Hardware Accuracy (@ CMV = 0 V): + 0.075% full-scale (23.5°+ 2°C), + 0.15% full-scale (0 to 50°C)

Technical Specifications
