The FC-SDO-0824 is an 8-channel safe digital output module for Honeywell Safety Manager SIS system.
Marca :
HoneywellNúmero de pieza :
FC-SDO-0824Descripción :
Digital Output ModuleOrigen :
USACondición :
NewDimensión :
63.5 mm x 124.46 mm x 307.34 mmPeso :
0.4 kgPago :
Bank Transfer

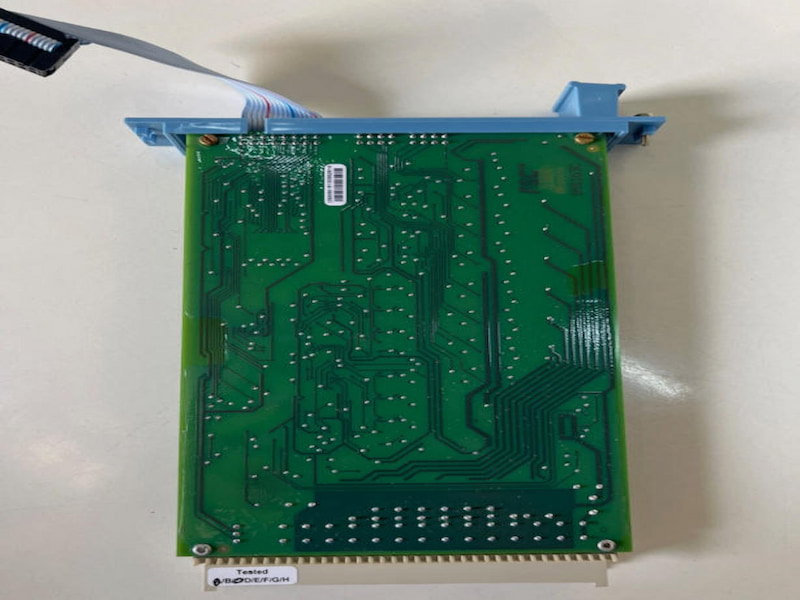

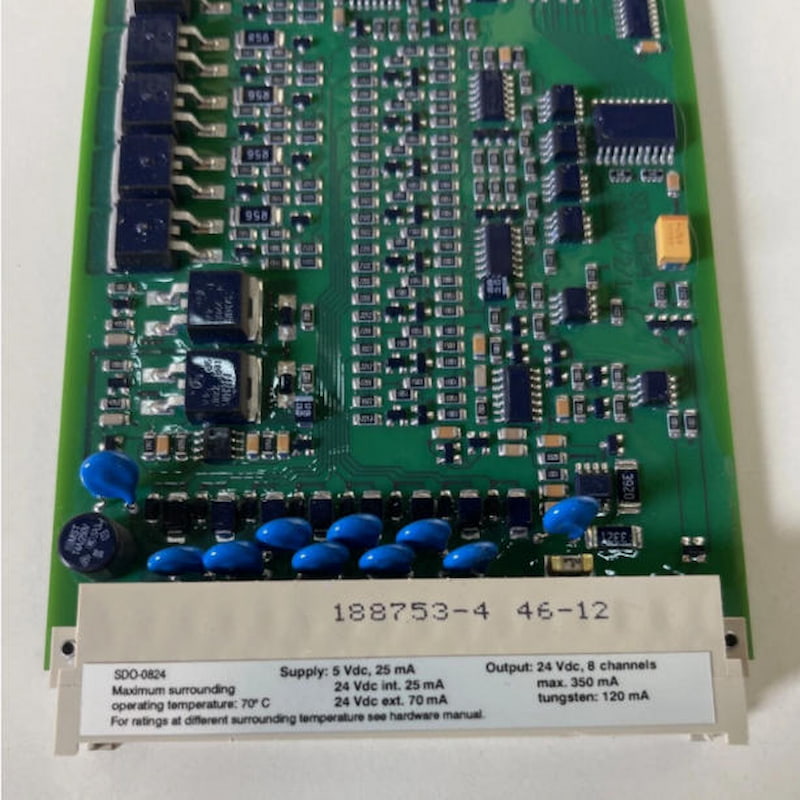

Honeywell FC-SDO-0824 Digital Output Module
Description
FC-SDO-0824 is a 8-channel safety digital output module specifically designed for the Safety Manager safety instrumented system of Honeywell. It belongs to the safety IO hardware of the SIS system and is used to output safety control signals to drive on-site actuators.
The module is equipped with 8 independent 24VDC solid-state output channels. The maximum output of each channel is 550mA. It has a fault-safe power-off shutdown mechanism and can drive devices such as solenoid valves and trip relays, meeting the SIL3 safety level requirements. It is widely used in the ESD emergency stop and fire-gas interlock safety circuits in the chemical and oil and gas industries.
Features
Compatible with Honeywell Safety Manager SIS safety system, with SIL3 certification for safety output card
8 isolated 24VDC output channels, each channel with a maximum driving capacity of 550mA
Built-in loop diagnosis, short circuit and overload protection, with no interference among individual channels
Equipped with a secondary forced power-off circuit, reliably cutting off on-site loads in case of a fault
Redundant configuration supports hot swapping, allowing for maintenance and replacement without downtime
Wide temperature industrial hardware, suitable for long-term operation in high-risk process control cabinets
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | FC-SDO-0824 |
| Ordering Information | FC-SDO-0824 |
| Product Catalog | SIS safety system |
| Description | Digital Output Module |
| Voltage | 24 vdc |
| Current | 4-20 mA |
| Dimensions | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 0.4 kg |
