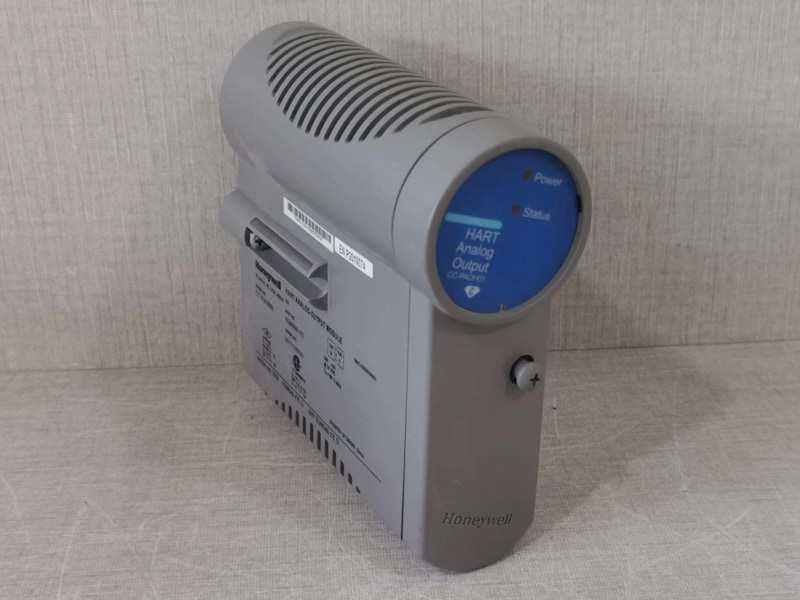

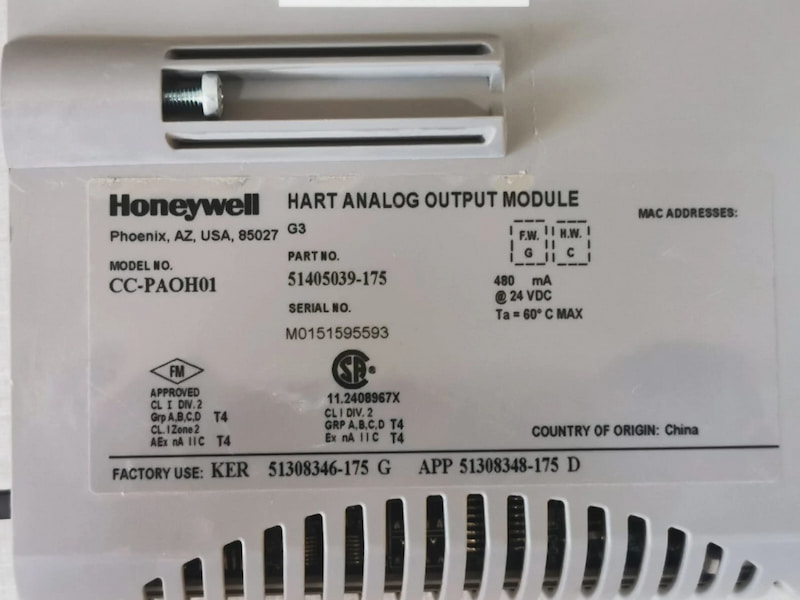

Honeywell CC-PAOH01(51405039-175) Analog Output 16pt HART

Honeywell CC-PAOH01(51405039-175) Analog Output 16pt HART

Function Description

The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices

Features

• Extensive self-diagnostics
• Optional redundancy
• HART-capable, multivariable instruments
• Multiple modems for fast collection of control variables
• Safe-state (FAILOPT) behaviors configurable on a per channel basis
• Output read-back and alarm on discrepancy
• Non-incendive output

FAILOPT

Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.

Open-wire Detection

This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.

Technical Specifications
