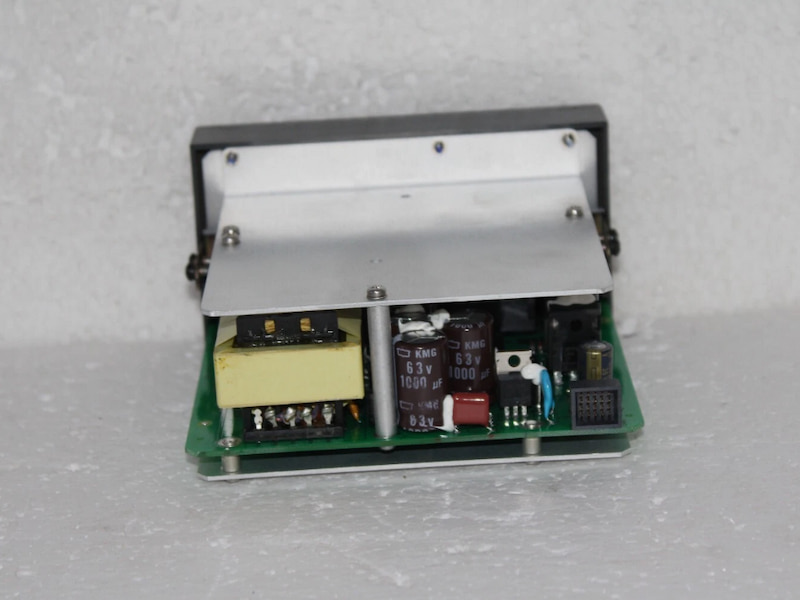

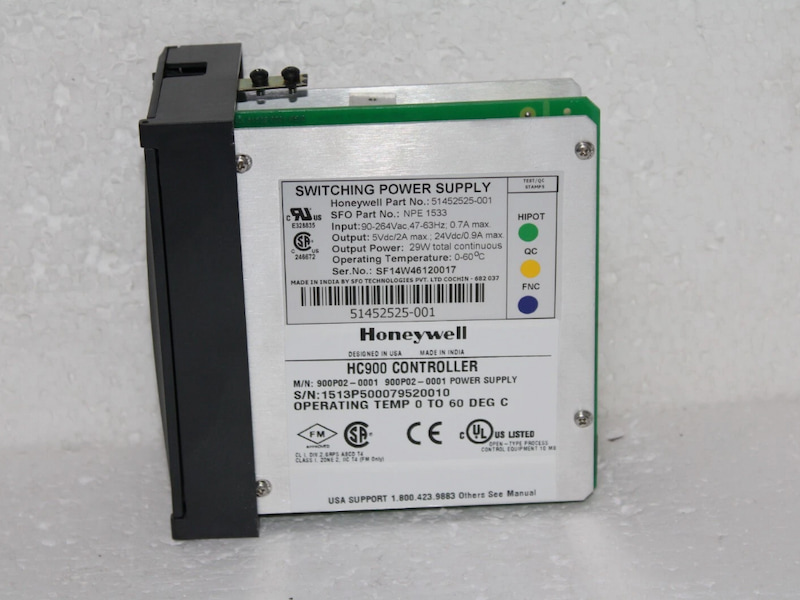

Honeywell 900P02-0001 Power Supply

Honeywell 900P02-0001 Power Supply

Description

The P01 power supply provides 5VDC and 24VDC to satisfy the power requirements of a rack with a controller and local I/O, a rack with a scanner, and remote I/O. The 60-watt capacity allows for almost any mix of I/O modules in one rack. See Module Specifications starting on page 6. A tool-secured door covers the high voltage connections; test jacks behind the door allow for quick verification of proper operation. An internal nonreplaceable fuse limits supply current under certain fault conditions.

Wiring：Screw type terminals, Wire gauge #12-22 AWG

Operating Voltage：Universal Power, 90-264VAC, 47-63 Hz

Input Rating：130VA

Output Rating：28W

In Rush Current：7 Amps peak-to-peak for 150 ms at 240 VAC

Fuse：Internal, non-replaceable

Test jacks：5 volt, 24 Volt

Hold up time：20milliseconds @ 115VAC, 60HZ maximum Load
