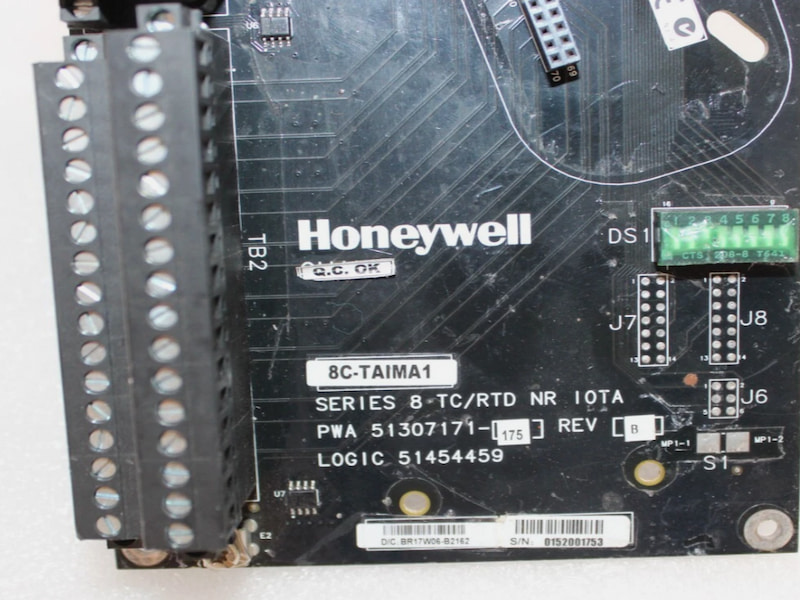

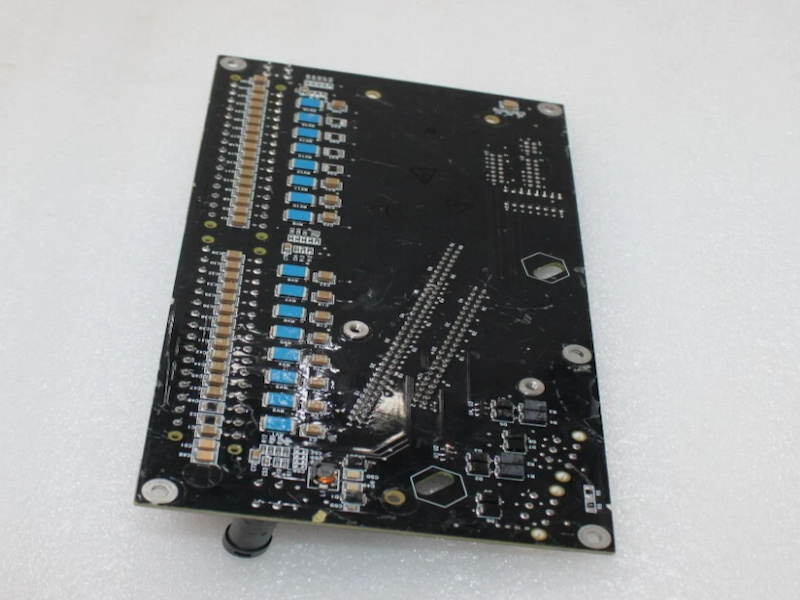

Honeywell 8C-TAIMA1 IOTA Modules

Honeywell 8C-TAIMA1 IOTA Modules

Description

IOTA Modules：8C-TAIMA1

Input Type：Thermocouple and / or RTD

Voltage Rating：24 VDC

Module current rating：120m A

Input Channels：16 fully-isolated channel-to-channel, channel-to-IOL, and channel-topower supply common in 16 channel increments

Input scan rate：1 second fixed by IOM, (up to 16 channels/sec max.)

Channel bandwidth：0 to 4.7 Hz (-3 dB)

Nominal input range (TC only)：-20 to +100 millivolts

Maximum normal mode continuous input non-damaging (any thermocouple type configured)：

  -10 to +10 volts (TC)

  -1 to +2 Volts @ 100 milliamps (RTD)

Gain error (-20 to +100 millivolt range)：0.050% full scale max

Technical Specifications
