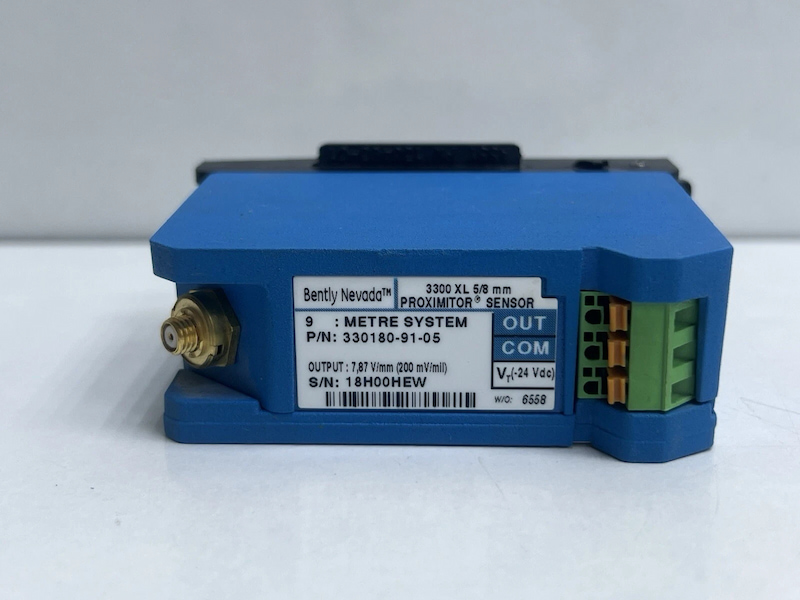

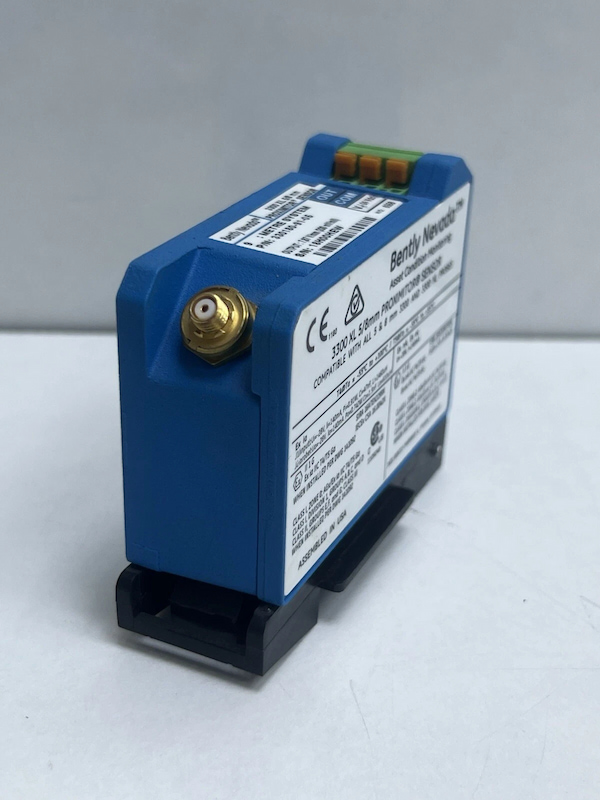

Bently Nevada 330180-91-05 3300 XL Proximitor Sensor

Bently Nevada 330180-91-05 3300 XL Proximitor Sensor

Functional Description

The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical

packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a

traditional panel mount configuration, where it shares an identical 4-hole mounting "footprint" with older

Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates

the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency

interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio

frequency signals. The 3300 XL Proximitor Sensor's improved RFI/EMI immunity satisfies European CE mark

approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs

and complexity.

The 3300 XL's SpringLoc terminal strips require no special installation tools and facilitate faster, more robust

field wiring connections by eliminating screw-type clamping mechanisms that can loosen.
